Toshiba TLP3149 Photorelays

Toshiba TLP3149 Photorelays combine a photo MOSFET optically coupled to an infrared light-emitting diode. The TLP3149 Photorelays are packaged in a 4-pin SOP (2.54SOP4) with 2.54mm lead pitch and 2.1mm height.

The Toshiba TLP3149 Photorelays feature low on-state resistance and high permissible on-state current. With these features, the TLP3149 is an excellent option for power line control applications.

Features

SOP (2.54SOP4) (Height 2.1mm, pitch 2.54mm) Package
Normally opened (1-Form-A)
100V (min) OFF-state output terminal voltage
3mA (max) Trigger LED current
1.5A (max) ON-state current
200mΩ (max) ON-state resistance
160pF (typ.) Output capacitance

1µA (max)@V_OFF = 100V Off-state current
1500V_rms (min) Isolation voltage
Safety standards
UL-approved: UL1577, File No. E67349
cUL-approved: CSA Component Acceptance Service No. 5A File No. E67349

Applications

ATE (Automatic Test Equipment)
Measuring instruments
Factory Automation (FA)

I/O Interface boards
Mechanical relay replacements

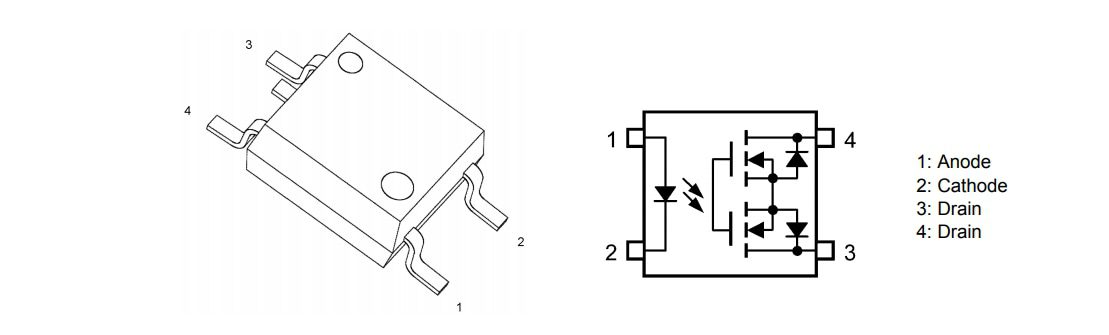

Package and Pin Assignment

Mechanical Drawing - Toshiba TLP3149 Photorelays

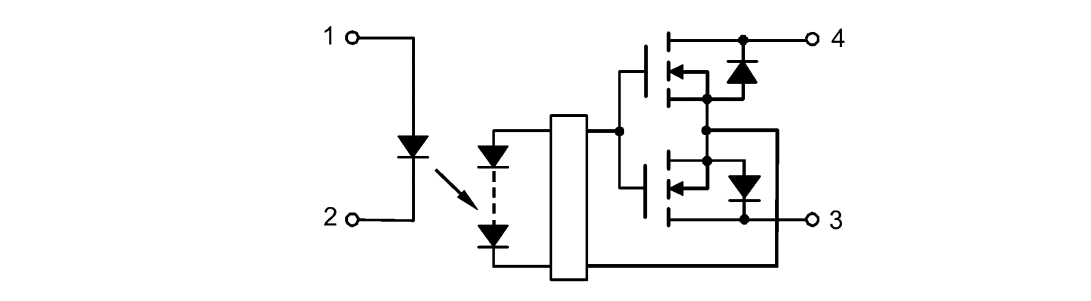

Internal Circuit

Application Circuit Diagram - Toshiba TLP3149 Photorelays
