Toshiba TLP3147 Photorelays

Toshiba TLP3147 Photorelays integrates a photo MOSFET optically coupled to an infrared light-emitting diode. The TLP3147 Photorelays is available in a 4-pin package with 2.54mm lead pitch and 2.1mm height.

The Toshiba TLP3147 Photorelays offer low on-state resistance and high permissible on-state current, making the device ideal for power line applications.

Features

SOP (2.54SOP4) (Height 2.1mm, pitch 2.54mm) Package
Normally opened (1-Form-A)
60V (min) OFF-state output terminal voltage
3mA (max) Trigger LED current
2.5A (max) ON-state current
100mΩ (max) ON-state resistance
240pF (typ.) Output capacitance

1µA (max)@V_OFF = 60V Off-state current
1500V_rms (min) Isolation voltage
Safety standards
- UL-approved: UL1577, File No. E67349
- cUL-approved: CSA Component Acceptance Service No. 5A File No. E67349

Applications

ATE (Automatic Test Equipment)
Measuring instruments
Factory Automation (FA)

I/O Interface boards
Mechanical relay replacements

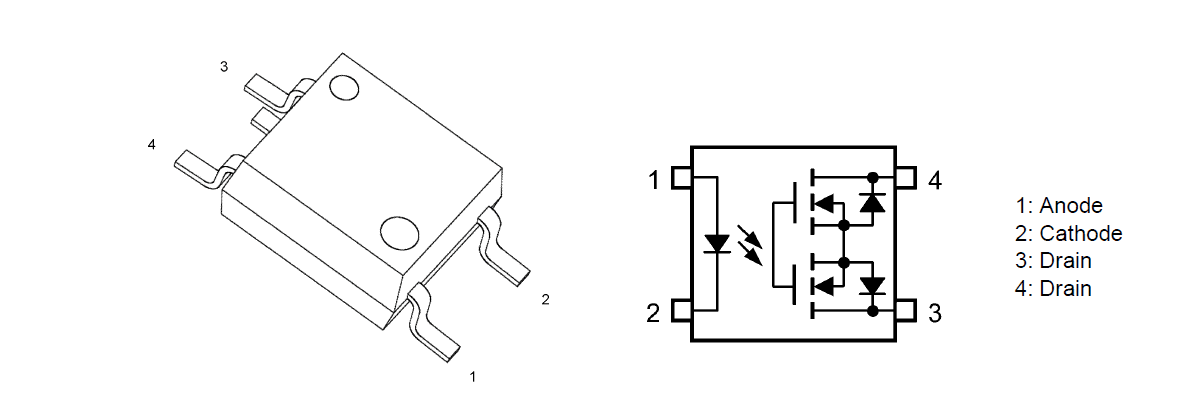

Package and Pin Assignment

Mechanical Drawing - Toshiba TLP3147 Photorelays

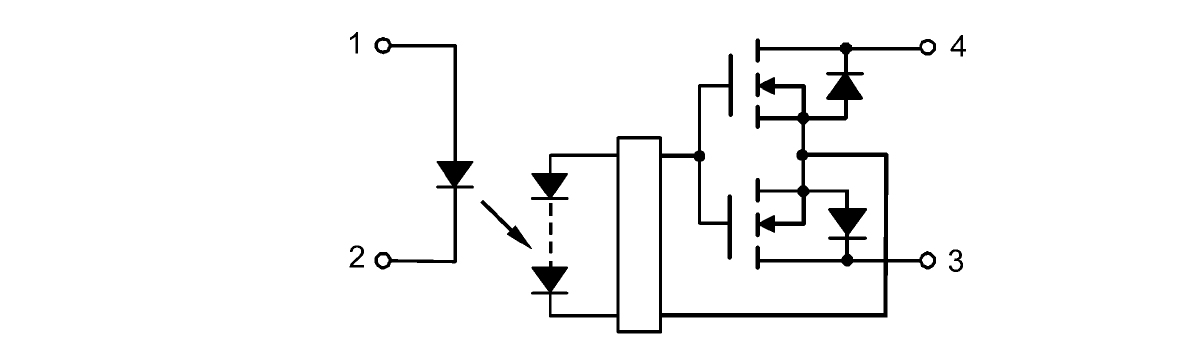

Internal Circuit

Application Circuit Diagram - Toshiba TLP3147 Photorelays
