Toshiba TLP3145 Photorelays

Toshiba TLP3145 Photorelays integrate a photo MOSFET optically coupled to an infrared LED. The TLP3145 is packaged in a 4-pin package with 2.54mm lead pitch and 2.1mm height.

The Toshiba TLP3145 Photorelays have a bidirectional switch, which can conveniently replace mechanical relays in many applications. Additionally, the TLP3145 Photorelays offer a high on-state maximum rating current even with a medium voltage of 200V and low on-state resistance, ideal for power line control.

Features

SOP Package (2.54SOP4) (Height 2.1mm, pitch 2.54mm)
Normally opened (1-Form-A)
V_OFF = 200V OFF-state output terminal voltage
3mA (max) Trigger LED current
0.4A (max) ON-state current
2.0Ω (max) ON-state resistance
100pF (typ.) Off-state capacitance

1µA (max) @ V_OFF = 200V Off-state current
1500V_rms (min) Isolation voltage
Safety standards
- UL-recognized: UL 1577, File No.E67349
- cUL-recognized: CSA Component Acceptance Service No. 5A File No. E67349

Applications

ATE (Automatic Test Equipment)
Measuring instruments
Factory Automation (FA)

I/O Interface boards
Mechanical relay replacements

Toshiba TLP3145 Photorelays

Features

Applications

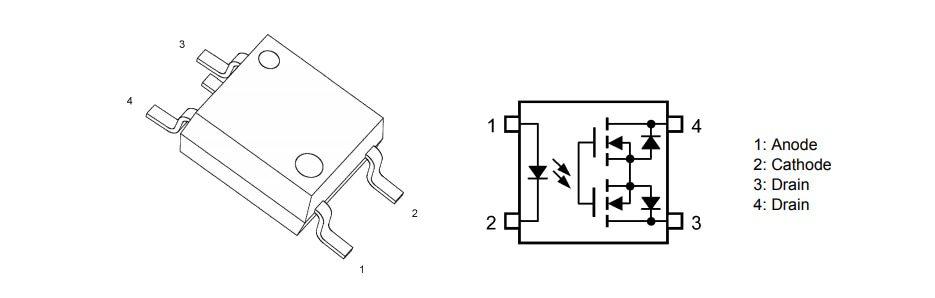

Package and Pin Assignment
