Toshiba TLP241B Photorelays

Toshiba TLP241B Photorelays consist of a photo MOSFET optically coupled to an infrared light-emitting diode. The TLP241B Photorelays are housed in a 4-pin DIP package. It provides an isolation voltage of 5000Vrms. This makes them ideal for applications that require reinforced insulation.

Features

Halogen-free
Normally opened (1-Form-A)
OFF-state output terminal voltage: 100V (min)
Trigger LED current: 3mA (max)
ON-state current: 2.0A (max)
ON-state resistance: 200mΩ

Isolation voltage: 5000Vrms (min)
Safety standards
UL-recognized: UL 1577, File No.E67349
cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
VDE-approved: EN 60747-5-5

Applications

Mechanical relay replacements
Security systems
Heating, ventilation and air conditioning (HVAC)

ATE (Automatic Test Equipment)
Factory automation
Battery Management Systems (BMS) (Non-Automotive)

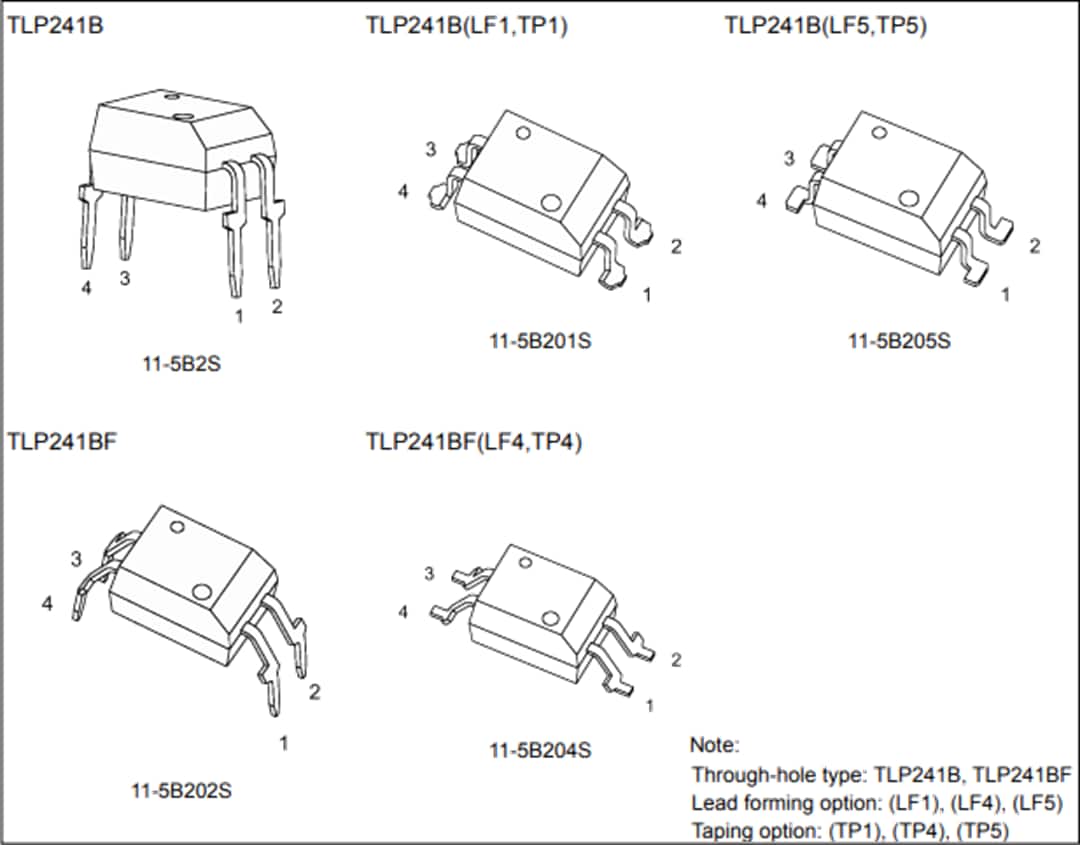

Package Outline

Mechanical Drawing - Toshiba TLP241B Photorelays
