Toshiba TCR3UM 300mA Low Dropout Regulators

Toshiba TCR3UM 300mA Low Dropout Regulators are CMOS general-purpose single-output voltage regulators with an on/off control input. The TCR3UM features an ultra-low quiescent bias current and low dropout voltage. The LDOs support fixed output voltages between 0.8V and 5.0V and can drive up to 300mA. Additionally, the devices provide over-current protection, thermal shutdown function, and auto-discharge.

The Toshiba TCR3UM 300mA Low Dropout Regulators specifies a low dropout voltage of 196mV (3.3V output, I_OUT = 300mA).

The TCR3UM is housed in the ultra-small plastic mold DFN4/DFN4E (1.0mm x 1.0mm; t 0.60mm package. The TCR3UM series coordinates with small ceramic input and output capacitors, making it ideal for portable applications that require high-density board assemblies, such as cellular phones, IoT equipment, and wearable devices.

Features

Ultra small package DFN4/DFN4E (1.0mm x 1.0mm; t 0.60mm (max))
Low quiescent bias current (I_B = 0.34μA (typ.) at I_OUT = 0mA, output voltage up to 1.5V)
High Ripple rejection ratio 70dB (typ.) at 0.8V-output
Fast Load transient response -51/+36mV at 0.8V-output, I_OUT = 1mA⇔50mA
Low Dropout voltage
- VDO = 196mV (typ.) at 3.3V-output, I_OUT = 300mA
Wide range output voltage line up (V_OUT = 0.8V to 5.0V)

High V_OUT accuracy ±1.0% (1.8V ≤ V_OUT)
Overcurrent protection
Thermal Shutdown function
Auto-discharge
Inrush current protection circuit
Pull down connection between CONTROL and GND
Ceramic capacitors can be used (C_IN = 1μF, C_OUT = 1μF)

Applications

Power IC developed for
Portable applications

IoT equipment
Wearable devices

Toshiba TCR3UM 300mA Low Dropout Regulators

Features

Applications

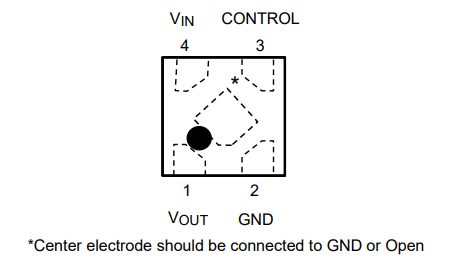

Pin Assignments

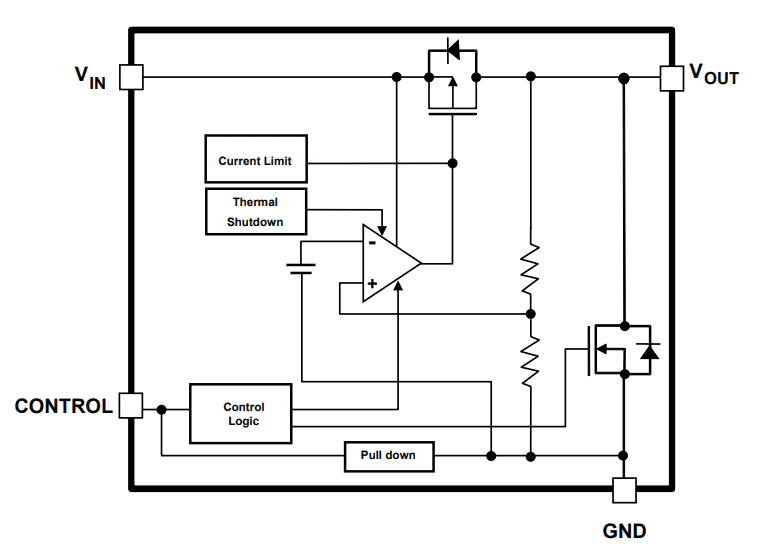

Block Diagram
