Toshiba TCR2LN 200mA Low Dropout Regulators

Toshiba TCR2LN 200mA Low Dropout Regulators are CMOS general-purpose single output voltage regulators with an on/off control input. The TCR2LN offers ultra-low quiescent bias current and low dropout voltage. The devices feature overcurrent protection and an auto-discharge option. The LDOs are specified in fixed output voltages between 0.8V and 3.6V and can drive up to 200mA.

The Toshiba TCR2LN 200mA Low Dropout Regulators have a low dropout voltage of 250mV (2.5V output, I_OUT = 150mA).

The TCR2LN is housed in the ultra-small plastic mold SDFN4/SDFN4E (0.8mm x 0.8mm x 0.38mm) package. The TCR2LN series coordinates with small ceramic input and output capacitors, making it ideal for portable applications that require high-density board assembly, such as cellular phones.

Features

Low quiescent bias current (I_B = 2μA (max) at I_OUT = 0mA, T_j = -40°C to 85°C)
Low dropout voltage
- VDO = 250mV (typ.) at 2.5V-output, I_OUT = 150mA
Wide range output voltage line up (V_OUT = 0.8V to 3.6V)
High V_OUT accuracy ±1.0% (1.8V ≤ V_OUT)

Overcurrent protection
Auto-discharge
Pull down connection between CONTROL and GND
Ceramic capacitors can be used (C_IN = 0.1μF, C_OUT = 0.1μF)
Ultra small package SDFN4 (0.8mm x 0.8mm x 0.38mm)

Toshiba TCR2LN 200mA Low Dropout Regulators

Features

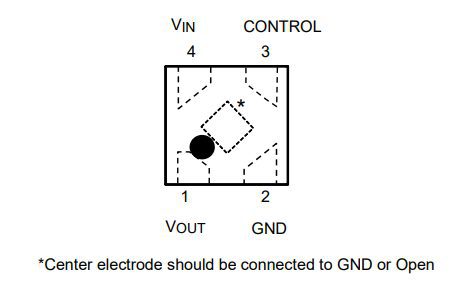

Pin Assignments

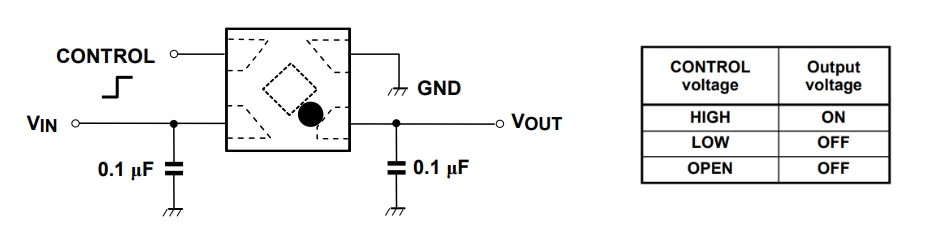

Application Circuit
