Toshiba TC78H660FNG Dual H Bridge Driver

Toshiba TC78H660FNG Dual H Bridge Driver is a highly integrated motor driver, which combines DMOS power transistors with low on-resistance in output transistors. The TC78H660FNG includes all the circuitry needed to drive two DC brushed motors or one stepping motor. A simple PWM (Pulse-Width Modulation) interface allows easy interface with the controller. The TC78H660FNG device operates off a single power supply and supports a wide input supply range from 2.5V to 16.0V. Internal protection functions are provided for thermal shutdown (TSD), over current (ISD), and under-voltage lockout (UVLO).

The Toshiba TC78H660FNG Dual H Bridge Driver is available in a P-TSSOP16 package, with a -40°C to +85°C operating temperature range.

Features

Built-in Dual H Bridge
PWM controlled constant-current drive
2.5V to 16.0V power supply operating voltage
2.0A maximum output current
Low on-resistance (High + Low side = 0.48Ω typical) MOSFET output stage
Built-in sense resistorless current control architecture (Advanced Current Detection System)
Built-in V_CC regulator for an internal circuit
Selectable Forward, Reverse, Stop, and Brake modes

Motor chopping frequency can be adjusted by an external resistor
Error detect functions
- Thermal Shutdown (TSD)
- Over Current (ISD)
- Under Voltage Lockout (UVLO)
Error detection (TSD/ISD) flag output function
-40°C to +85°C operating temperature range
P-TSSOP16 package

Applications

Appliances and white goods
POS printers

Office automation
Robotics

Toshiba TC78H660FNG Dual H Bridge Driver

Features

Applications

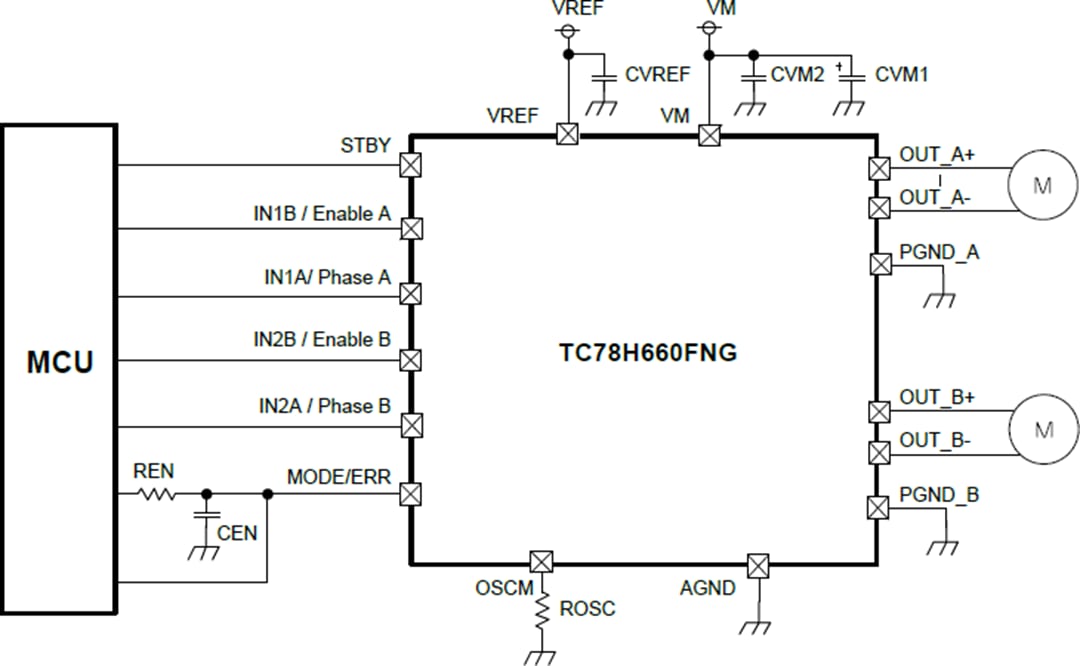

Typical Application Circuit

Block Diagram
