Toshiba TC78B011FTG CDMOS Linear IC

Toshiba TC78B011FTG CDMOS Linear IC is a 3-phase PWM chopper predriver for sensorless brushless motor. This linear IC is used with six external MOSFETs inverters that are used to operate sensorless brushless motors with a wide output range. The CDMOS TC78B011FTG motor speed can be controlled by an analog voltage, PWM duty cycle, and I²C. The TC78B011FTG IC realizes a closed-loop speed control function without an external microcontroller. This IC also comes with built-in closed-loop speed control with an adjustable speed curve. The TC78B011FTG IC is capable to drive Delta or Wye configured motors. This linear IC operates at a 5.5V to 27V operating range and an absolute maximum rating of 30V. The TC78B011FTG IC is applicable in fans, pumps, and portable vacuum motors.

Features

Sine-wave drive and sensorless PWM drive
Capable to drive Delta or Wye configured motors
Pre driver for high side and low side N-channel MOSFETs drive
Built-in closed-loop speed control with adjustable speed curve
Standby mode (by STBY pin)
Current monitor output (PHBF pin)
CW/CCW control (CWCCW pin)
Brake input pin (BRAKE pin)

Rotation speed output (FG pin)
Abnormality detection output (ALERT pin)
Thermal Shutdown (TSD)
Under-Voltage Lockout (UVLO)
Charge Pump Low Voltage Detection (CPVSD)
Output Current Limit (OCP)
Over-Current Detection (ISD)

Applications

Fans
Pumps
Portable vacuum motors

Specifications

5.5V to 27V operating voltage (30V absolute maximum rating)
8 selectable levels of gate drive current
Motor speed control by analog voltage, PWM duty cycle, or I²C

I²C serial interface for various settings
Lock protection
QFN36 small package

Toshiba TC78B011FTG CDMOS Linear IC

Features

Applications

Specifications

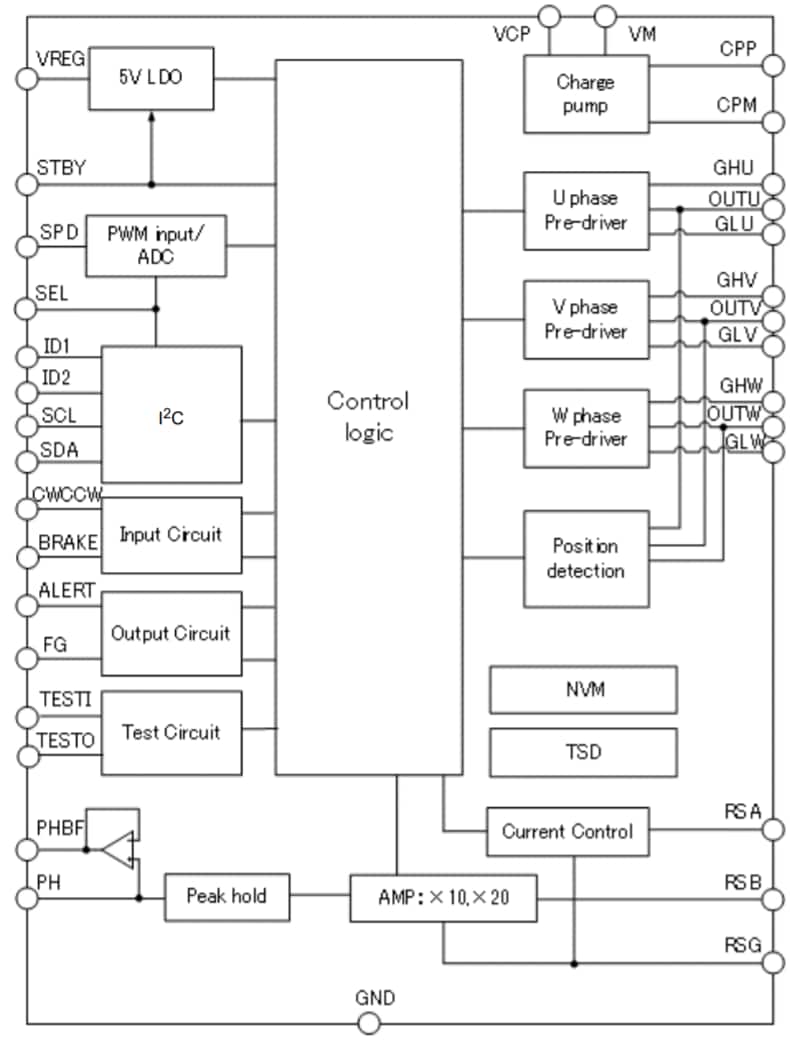

Block Diagram

Application Circuit
