Toshiba TB9058FNG Automotive DC Servo Motor Driver

Toshiba TB9058FNG Automotive DC Servo Motor Driver measures the current motor position, controls motor rotation, and ensures the rotational position reaches the target position. This motor driver operates within 7V to 18V supply voltage range and -40°C to 125°C temperature range. The TB9058FNG motor driver is based on the Local Interconnect Network (LIN) 1.3 protocol specification and is AEC-Q100 qualified.

Features

Data communication with LIN (slave)
19200bps / 9600bps / 4800bps / 2400bps communication rate
Enhanced checksum
±1.5A driver short-circuit protection
Over-temperature and over-voltage protection circuits

≤10µA standby current consumption
7V to 18V operating supply voltage range
-40°C to 125°C operating temperature range
150°C junction temperature (Tj max)
AEC-Q100 qualified

Toshiba TB9058FNG Automotive DC Servo Motor Driver

Features

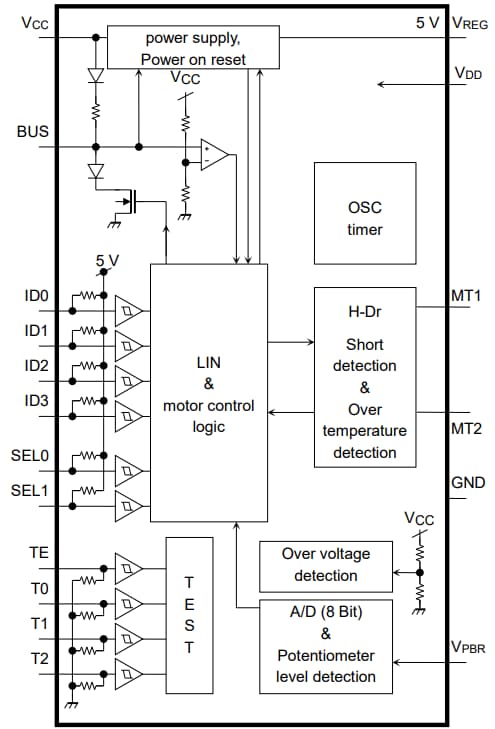

Block Diagram
