Toshiba SSM14N956L MOSFET

Toshiba SSM14N956L MOSFET features low source-source on-resistance and is RoHS compatible. The SSM14N956L MOSFET is halogen-free. This MOSFET provides 2.44W on the condition (t ≤ 10s) and operates at 150°C channel temperature and -55°C to 150°C storage temperature range. The R_SS(ON) = 1.1mΩ (typ) (@V_GS = 3.8V) and R_SS(ON) = 1mΩ (typ) (@V_GS = 4.5V) are the low source-source on-resistance. This SSM14N956L MOSFET is ideally used in battery protection circuits.

Features

RoHS compatible
Halogen-free
Used in battery protection circuits

Specifications

2.44W (t ≤ 10s) power dissipation
76nC gate charge
12V source to source voltage
Low source-source on-resistance
- R_SS(ON) = 1.1mΩ (typ) (@V_GS = 3.8V)
- R_SS(ON) = 1mΩ (typ) (@V_GS = 4.5V)

±8V gate to source voltage
150°C channel temperature
-55°C to 150°C storage temperature range

Toshiba SSM14N956L MOSFET

Features

Specifications

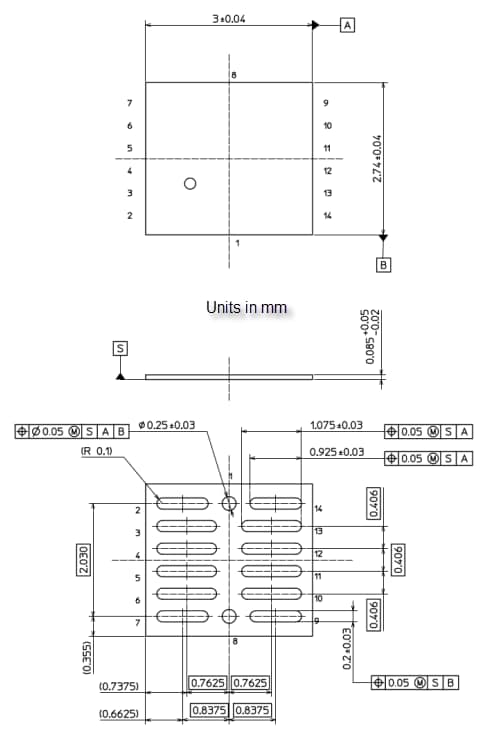

Dimension Diagram

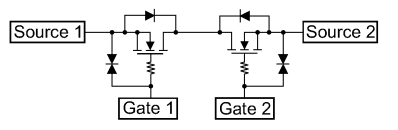

Equivalent Circuit Diagram
