Toshiba 50V Brushed and Stepper Motor Drivers support multi-sourcing market requirements and are suitable for many new and legacy designs. The TB67H480FNG and TB67H481FNG modules are 2-channel 50V/2.5A brushed motor drivers. The TB67H480FNG uses a phase input, while the TB67H481FNG uses a clock input. The TB67S580FNG and TB67S581FNG are 50V stepper motor drivers with 1.6A and 2.5A, respectively, and up to 32-step resolution micro-stepping. Toshiba 50V Brushed and Stepper Motor Drivers are packaged in a user-friendly, robust, and thermally enhanced HTSSOP-28 package and are protected with overcurrent, overtemperature, and undervoltage alerts. The TB67S580FNG and TB67S581FNG are suitable for a wide range of 12V to 36V low-power industrial systems and are ideal for precision motor control applications. The TB67H480FNG and TB67H481FNG are suitable for general motion applications.

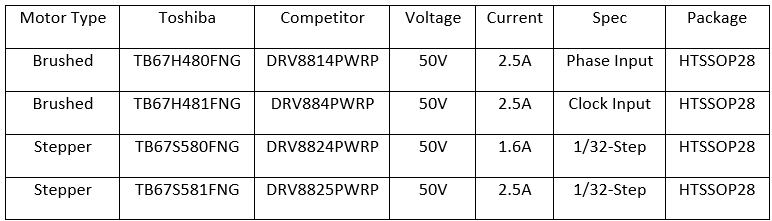

These Toshiba parts are pin-to-pin compatible to facilitate the market demand for multi-sourced components and may be considered as replacements for industry-recognized motor drivers in the table below.
