Toshiba 40V & 50V Stepper Motor Drivers

Toshiba 40V and 50V Stepper Motor Drivers are compact, fully integrated, and suitable for various industrial applications like printers and CNC machines. The Toshiba drivers offer precise control with micro-stepping options and include features like an integrated charge pump and Advance Current Detection System (ACDS) for effective motor driving. Error detection alerts external hosts during fault conditions.

Features

40V and 50V fully integrated stepper motor drivers
Wide operating range, 4.5V to 34V for 40V drivers, 8.2V to 44V for 50V drivers
1.5A to 3.0A range
Advanced Dynamic Mixed Decay (ADMD)

Advanced Current Detection System (ACDS)
No charge pump capacitor needed
Fault alert
QFN24 4mm x 4mm, QFN32 5mm x 5mm, and HTSSOP28 packages

Applications

Printers
3D printers
CNC machines
Actuators
Automation

Robotics
Vending machines
ATMs
Gaming machines
Industrial equipment

Toshiba 40V & 50V Stepper Motor Drivers

Features

Applications

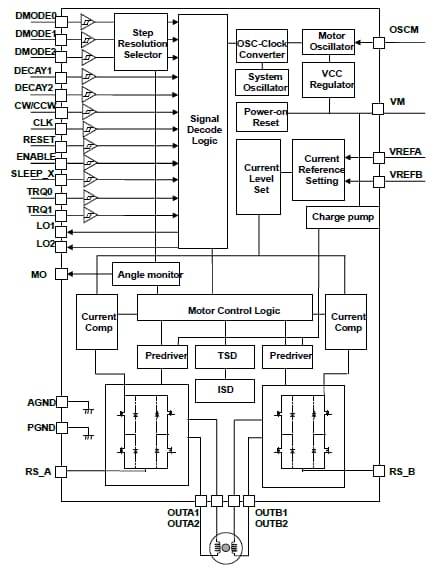

Block Diagram

Videos
