Torex Semiconductor XCL104/XCL105 Step-Up DC/DC Converters

Torex Semiconductor XCL104/XCL105 Step-Up DC/DC Converters are synchronous converters that integrate an inductor with a 0.17Ω Nch driver FET and 0.23Ω synchronous Pch switching FET built-in. These converters include a built-in coil minimizing the size of the converter and the required time in selecting the components due to the lower external component counts. The step-up micro DC/DC converters can start operation from an input voltage of 0.9V and feature an output voltage range of 1.8V to 5.5V. These converters are ideal for industrial equipment, the Internet of Things (IoT), wearables, mobile devices, and any equipment emphasizing battery life.

Features

Protection function:
- Thermal shutdown
- Current limit
- Integral latch method (D/E/F/J/K/L types)
- Short-circuit protection (D/E/F/J/K/L types)
- Undervoltage-lockout (G/H/M/J/K/L types)

Functions:
- Soft-start
- Load disconnection (A/C/D/F/G/M/J/L types)
- C_L auto discharge (A/D/G/J types)
- Bypass switch (XCL105 B/E/H/K types)

Specifications

0.65V to 6V input voltage range
0.9V operation start voltage
Fixed output voltage:
- 1.8V to 5.5V (A/B/C types)
- 2.2V to 5.5V (Except A/B/C types)
Output current:
- 710mA @V_OUT=5.0V, V_IN=3.3V
- 420mA @V_OUT=3.3V, V_IN=1.8V

1.2MHz oscillation frequency
3mm x 3mm x 1.7mm dimensions
Ceramic output capacitor
DFN3030-10B package
-40°C to 105°C operating temperature range
EU RoHS compliant
Lead-free

Applications

Portable equipment
Beauty and health equipment
Wearable devices
Game and hobbies
PC peripherals

Devices (Battery):
- 1 to 3 Alkaline
- 1 to 3 Nickel hydride
- 1 Lithium
- 1 Li-ion

Torex Semiconductor XCL104/XCL105 Step-Up DC/DC Converters

Features

Specifications

Applications

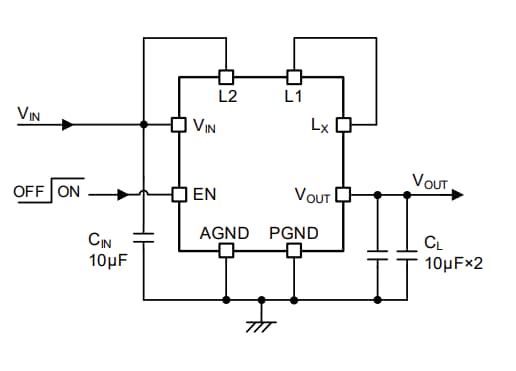

Typical Application Circuit
