Torex Semiconductor XC9276 Synchronous Step-Down PFM DC/DC Converter

Torex Semiconductor XC9276 Synchronous Step-Down PFM DC/DC Converter has an output voltage switchover function. It also has an ultra-low power consumption circuit and a PFM control. The efficiency performance at a light load current is dramatically improved by implementing ultra-low power consumption circuits which have a 200nA consumption current, and the PFM control method. Additionally, a two-preset output voltage switchover function is available using a V_SET pin.

Features

1.8V ~ 6.0V input voltage range
0.5V ~ 1.9V (0.05V increments) output voltage setting
2.0V ~ 3.6V (0.1V increments)
Output voltage accuracy ±20mV (VOUT 1, 2 ≦ 1.0V) ±2.0% (V_OUT 1,2＞1.0V)
150mA output current
200nA @ V_OUT=1.8V (TYP.) supply current
Control Method
- PFM control
Function
- Output Voltage selectable function
- CL Discharge (D Type)
- UVLO function

Protection Functions
- Short Protection
- Input/Output Capacitor
- Ceramic Capacitor Compatible
-40 ~ 85℃ operation ambient temperature
Package
- WLP-6-03 (1.72 x 1.07x 0.33mm)
- SOT-26W (2.9mm x 2.8mm x 1.3mm)
- USP-8B06 (2.0mm x 2.0mm x 0.33mm)
Environmentally friendly EU RoHS compliant, Pb free

Applications

Smart meter
Low power RF
Sensor module
Wearable devices

Energy harvest devices
Back-up power supply circuit
Smart card
Devices with 1 Lithium cell

Torex Semiconductor XC9276 Synchronous Step-Down PFM DC/DC Converter

Features

Applications

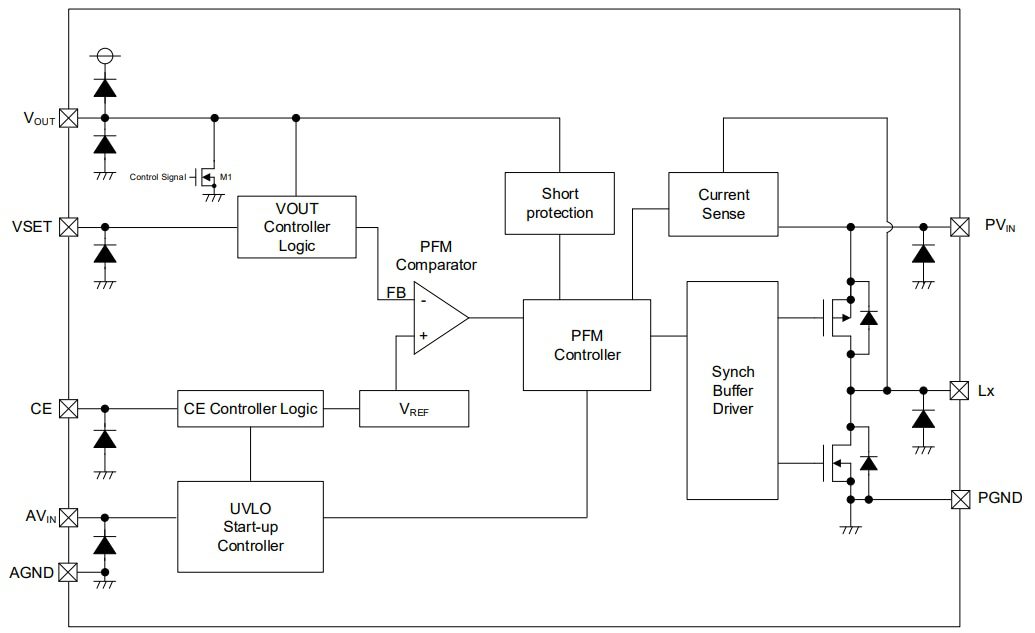

BLOCK DIAGRAM
