Torex Semiconductor XC6138 Multi-Function Voltage Detectors

Torex Semiconductor XC6138 Multi-Function Voltage Detectors feature a separate power supply pin and voltage detection pin (sense pin), which supports high withstand voltage 76V operation. This enables the direct monitoring of 12V/24V and similar power lines without using divided resistance, resulting in higher accuracy, lower power consumption, reduced use of space, and improved reliability. The XC6138 also allows the user to set both the detection voltage and the release voltage, supporting a variety of voltage lines. The delay time can be externally adjusted via an external capacitor, making it possible to select the detection/release delay time ratio. Torex Semiconductor XC6138 Multi-Function Voltage Detectors include a manual reset function. The series is available in a space-saving DFN1515-6A package with 1.5mm x 1.5mm x 0.38mm dimensions and is ideal for applications with limited circuit board mounting space.

Features

High accuracy
Separate power supply pin and voltage detection pin (sense pin)
Allows direct monitoring of 12V/24V and similar power lines without using divided resistance
Lower power consumption

Reduced use of space
Improved reliability
User can set both detection voltage and release voltage
Ideal for applications with limited circuit board mounting space
Lead free
EU RoHS compliant

Applications

Battery voltage monitoring
Microcontroller reset and malfunction monitoring

System power-on reset
Power failure detection

Specifications

2.2V to 6V operating voltage range
0.0V to 76V V_SEN voltage range
2.3V to 20V detect voltage range
2.5V to 24V release voltage range (+5% to +50% of detect voltage)
±1.5% detect voltage accuracy and release voltage accuracy (Ta = +25°C) and ±3% (Ta = -40°C to +125°C)
±50ppm/°C temperature characteristics
CMOS output type or Nch open drain
H level output logic or L level at detect

Low supply current
- I_DD 0.5µA at V_DD = 2.2V
- I_SEN 0.15µA at V_SEN = 12V
Function
- Adjustable detect/release delay time externally
- Selectable detect/release delay time ratio
- Manual reset
-40°C to +125°C operating ambient temperature range
DFN1515-6A package (1.5mm x 1.5mm x 0.38mm)

Torex Semiconductor XC6138 Multi-Function Voltage Detectors

Features

Applications

Specifications

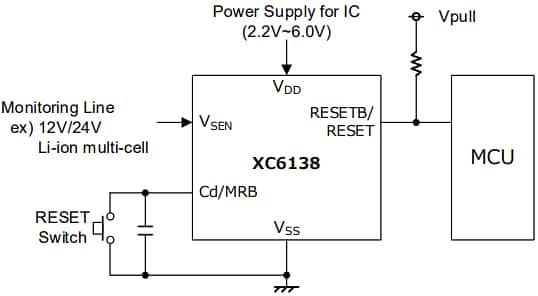

Typical Application Circuit

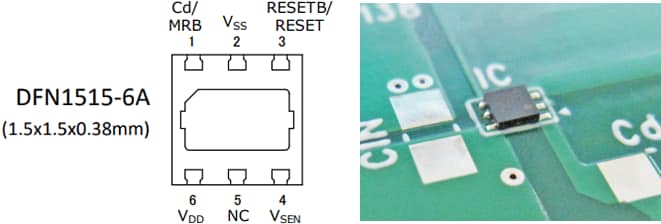

Small Package
