Toradex Yavia Carrier Board

Toradex Yavia Carrier Board provides easy access to the most common features of the Verdin family and supports both current and future Verdin System-on-Modules (SOMs). This compact carrier board features USB 3.x, Gigabit Ethernet, HDMI, MIPI CSI, and PCIe technologies. The Yavia carrier board exhibits built-in UART-to-USB transceivers that allow users to monitor and communicate with UART interfaces via USB without any additional cables/accessories. This carrier board is intended for use in application software development using the easy-to-use industrial Linux platform. The capabilities of the carrier board can be further extended with daughter boards (via the extension connectors).

Features

1x Gigabit Ethernet (RJ45 connector with integrated magnetics)
1x USB 2.0 dual role (USB Type-C™ connector)
1x USB 3.x host (USB Type-A connector)
1x USB 2.0 host (USB Type-A connector)
1x USB 2.0 debug (USB Type-C connector)
1x microSD card slot
1x CAN header (via CAN FD transceiver)
2x Low-speed extension headers with the following interfaces:
- 2x I²C
- 1x I²S
- 1x SPI
- 2x PWM
- 4x dedicated GPIOs
- 4x ADC
- 2x UART (with flow control)
- 1x CAN
- Control signals
- Power pins:
  - 1x 1.8V
  - 1x 3.3V
  - 1x 5V
  - 2x Grounds
2x HDMI:
- 1x native Verdin interface
- 1x converted from the Verdin MIPI DSI interface

1x PCIe (mPCIe connector):
- 1x PCIe (1x lane)
- 1x USB 2.0
- 1x SIM card support
- 3x LEDs (LED_WWAN, LED_WLAN, and LED_WPAN)
- 1x SMBus (optional, connected to the general-purpose I²C bus)
- 1x NanoSIM slot
1x Quad lane MIPI CSI camera interface (connector defined by the Toradex MIPI CSI-2 interface standard)
1x JTAG (Cortex debug connector)
1x RTC backup battery holder
The Yavia provides the following additional features:
- PCB temperature sensor
- 256Kb EEPROM
- Push-buttons:
- On/Off
- Reset
- Recovery mode
- Power disable
- LEDs:
  - 2x RGB (user-controllable)
  - Status and activity indicators
8V_DC to 25V_DC±10% supply voltage
0°C to 60°C temperature range

Toradex Yavia Carrier Board

Features

Videos

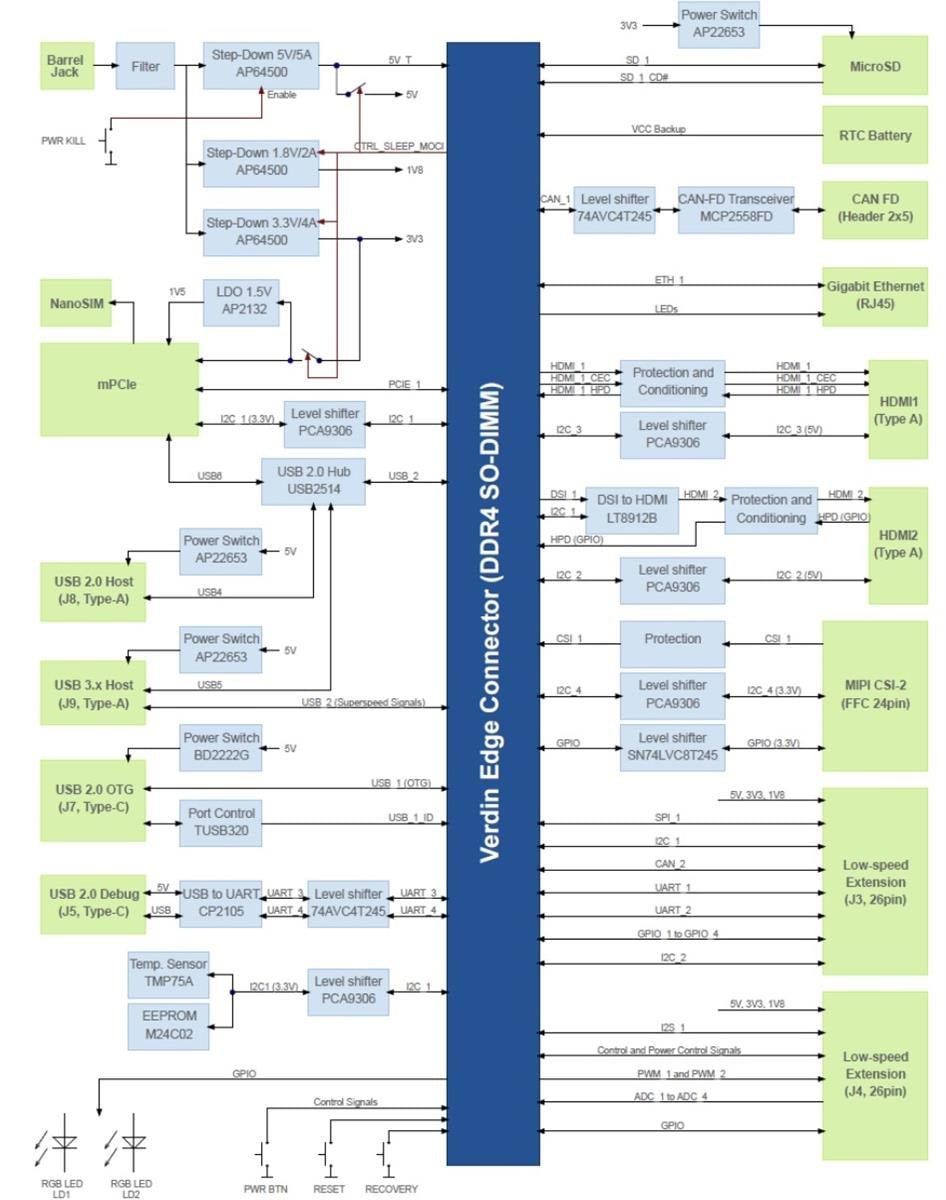

Block Diagram

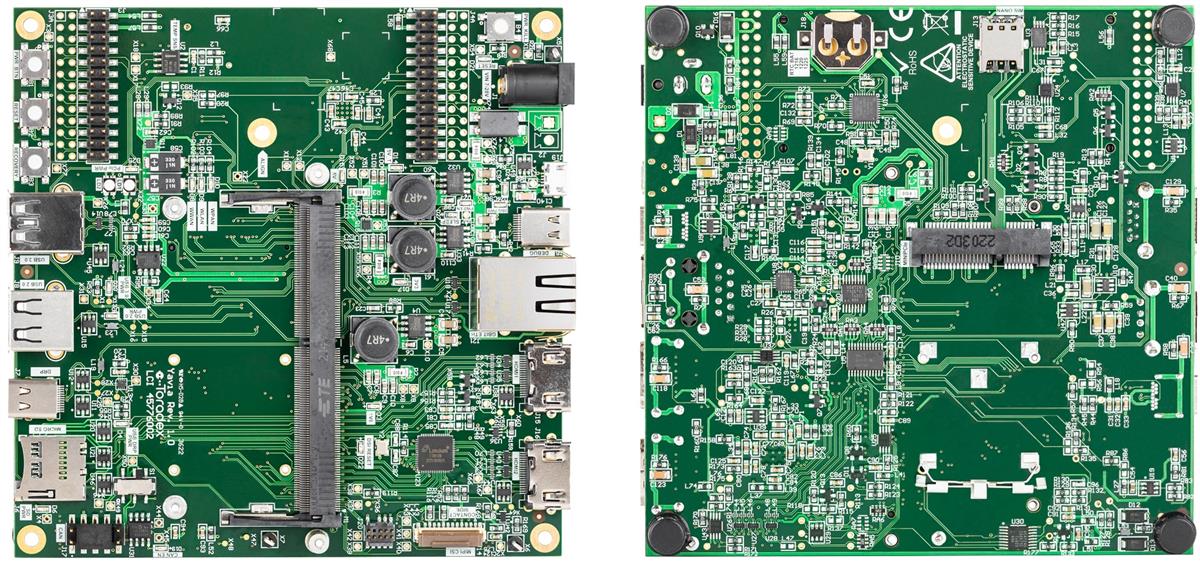

Board Overview
