Toradex Verdin iMX8M Plus

Toradex Verdin iMX8M Plus is an NXP i.MX 8M Plus applications processor. The device features a 2.3 TOPS Neural Network Processing Unit ideal for Machine Learning applications. The sampling SoC can process AI algorithms on MobileNet v1 at over 500 images per second. It can run Linux on a 1.8GHz, quad-core Cortex-A53 i.MX8M Plus. Other features include a 3D GPU, a Cortex-M7 MCU, a HiFi4 DSP, and dual ISPs.

Features

Pin-compatible with all Verdin SoMs
Based on NXP® i.MX 8M Plus SoC
Up to 4x Cortex-A53 at up to 1.8GHz
Cortex-M7 at 800MHz
Up to 4GB RAM and 32GB eMMC Flash
Optional dual-band 802.11ac 2×2 Wi-Fi with BLUETOOTH® 5
NPU (Neural Processing Unit)

2x GigE, 2x MIPI-CSI, PCIe, USB 3.0, 2x CAN FD, etc.
-40°C to +85°C temperature range
Large ecosystem including cameras and machine learning frameworks
High vibration/shock tolerance
Torizon™
Available until 2030+

Toradex Verdin iMX8M Plus

Features

Videos

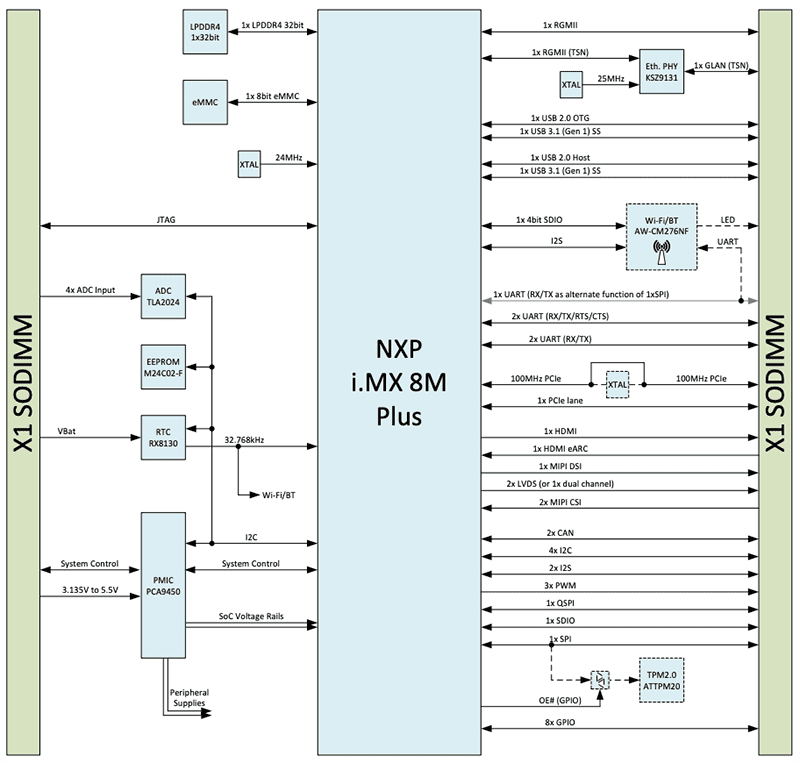

Block Diagram
