Toradex Verdin iMX8M Mini

Toradex Verdin iMX8M Mini features the NXP® i.MX 8M Mini embedded System on Chip (SoC). The Verdin iMX8M Mini incorporates DVFS (Dynamic Voltage and Frequency Switching) and thermal throttling. This allows the system to continuously adjust operating frequency and voltage in response to changes in workload and temperature. The Verdin iMX8M Mini is available with an optional a Dual-Band (2.4/5GHz) Wi-Fi ac/a/b/g/n and Bluetooth 5/BLE interface. The Wi-Fi module features MHF4 compatible connectors for external antennas. The module is pre-certified for FCC (US), CE (Europa), IC (Canada), TELEC (Japan), and WPC (India).

Features

Based on the NXP® i.MX 8M Mini SoC
- Up to 4 Cortex-A53 at up to 1.8GHz
- Cortex-M4 at up to 750MHz
Up to 2GB RAM and 16GB eMMC Flash
Optional Dual-band 802.11ac 2×2 Wi-Fi with BLUETOOTH® 5
PCIe, MIPI-CSI, CAN FD, ADC, etc.

Hardware-based Security
Supported by SoC
Optional TPM 2.0
-40°C to +85°C temperature range
Torizon™
Product availability until 2030+

Toradex Verdin iMX8M Mini

Features

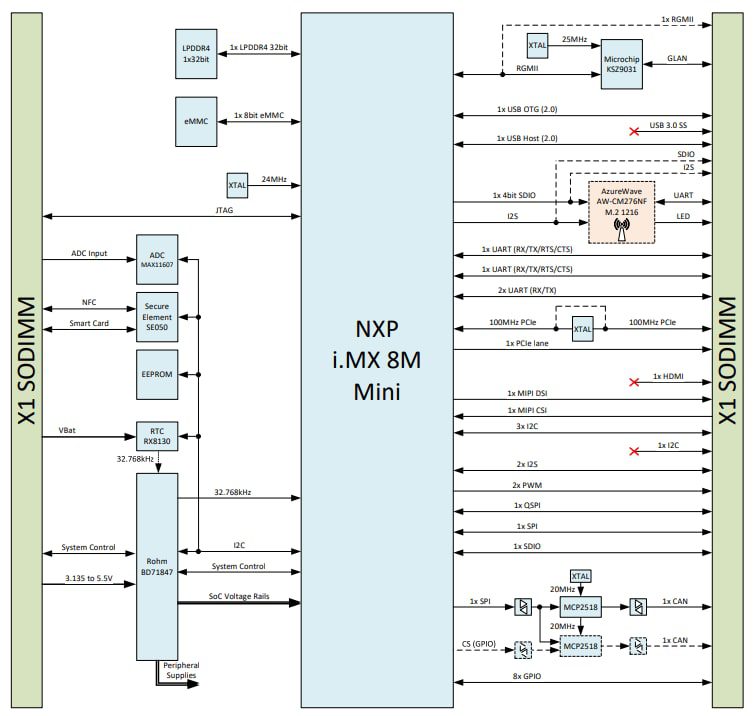

Block Diagram
