Texas Instruments UCC27332Q1EVM Evaluation Module

Texas Instruments UCC27332Q1EVM Evaluation Module is designed to evaluate the performance of the UCC27332-Q1. The UCC27332-Q1 is a 20V, single-channel low-side driver with a 9A peak source and 9A peak sink current for driving Si/IGBTs and GaN FETs. The TI UCC27332Q1EVM Evaluation Module can be used to evaluate other pin-to-pin compatible parts in the supported package.

Features

  • 4.5V to 18V VCC Power supply range
  • EVM For the low-voltage features of the UCC27332-Q1 gate driver
  • PCB Layout optimized for bias supply bypassing cap, gate-drive resistance selection

Applications

  • Automotive DC-DC converters
  • Automotive on-board charger
  • Telecom DC-DC converters
  • Power factor correction (PFC) circuits

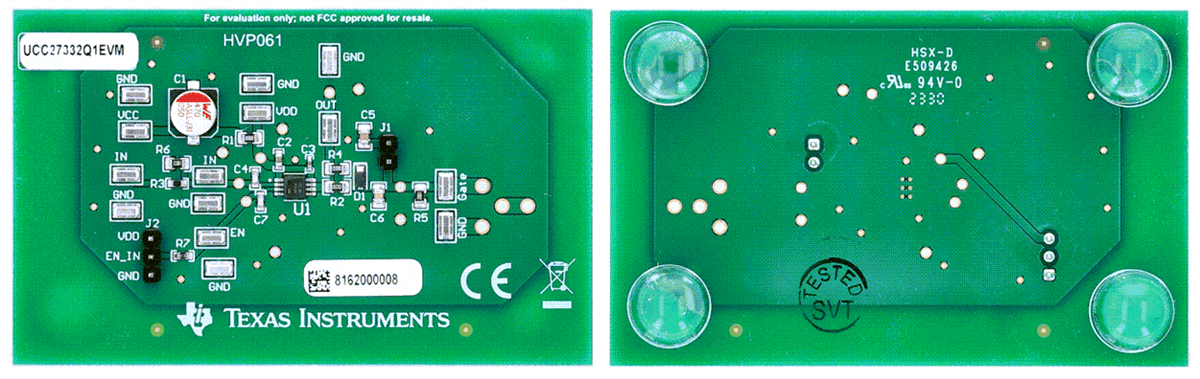

Layout

Texas Instruments UCC27332Q1EVM Evaluation Module

Bench Setup Diagram & Configuration

Location Circuit - Texas Instruments UCC27332Q1EVM Evaluation Module
