Texas Instruments UCC15240-Q1 Automotive Isolated DC/DC Module

Texas Instruments UCC15240-Q1 Automotive Isolated DC/DC Module provides high isolation and is designed to supply power to IGBT or SiC gate drivers. The UCC15240-Q1 combines a transformer and DC/DC controller with a proprietary architecture to enable high efficiency with very low emissions. The high-accuracy output voltages offer better channel enhancement for higher system efficiency without over-stressing the power device gate.

The TI UCC15240-Q1 equips up to 2.5W (typical) of isolated output power at high efficiency, requires minimum external components, and includes on-chip device protection with extra features. These features for the device comprise input under-voltage lockout, output voltage power good comparators, over-voltage lockout, overtemperature shutdown, soft-start timing, adjustable isolated positive and negative output voltage, an open-drain output power good pin, and enable pin.

Features

Fully integrated high-density isolated DC/DC module with isolation transformer
Isolated DC/DC for driving of IGBTs, SiC, and Si MOSFETs
Input voltage range of 21V to 27V with 32V absolute maximum
2.5W output power at T_A ≤ 85°C and 2.0W output power at T_A ≤ 105°C
Adjustable single or dual output voltages (using resistors) with <±1.3% regulation accuracy over the full operating range
Low electromagnetic emission with spread spectrum modulation and integrated transformer design
Enable, Power Good, UVLO, OVLO, soft-start, short-circuit, power-limit, under-voltage, overvoltage, and over-temperature protection

CMTI >150kV/µs
AEC-Q100 qualified for automotive applications
- Temperature grade 1 of -40°C ≤ T_J ≤ 150°C
- Temperature grade 1 of -40 °C ≤ T_A ≤ 125°C
Functional safety-capable documentation available to aid functional safety system design
Planned safety-related certifications
- 5657VPK basic isolation per DIN EN IEC
- 60747-17 (VDE 0884-17)
- 3000V_RMS isolation for 1 minute per UL 1577
- Basic insulation per CQC GB4943.1
36-pin, wide SSOP package

Applications

Hybrid, electric, and power train system (EV/HEV)
- Inverter and motor control
- On-board (OBC) and wireless charger
- DC/DC converter
Industrial transport
- Off-highway vehicle’s electric drive

Grid infrastructure
- EV charging station power module
- DC charging (pile) station
- String inverter
Motor drives
- AC inverters and VF drives, robot servo drive

Texas Instruments UCC15240-Q1 Automotive Isolated DC/DC Module

Features

Applications

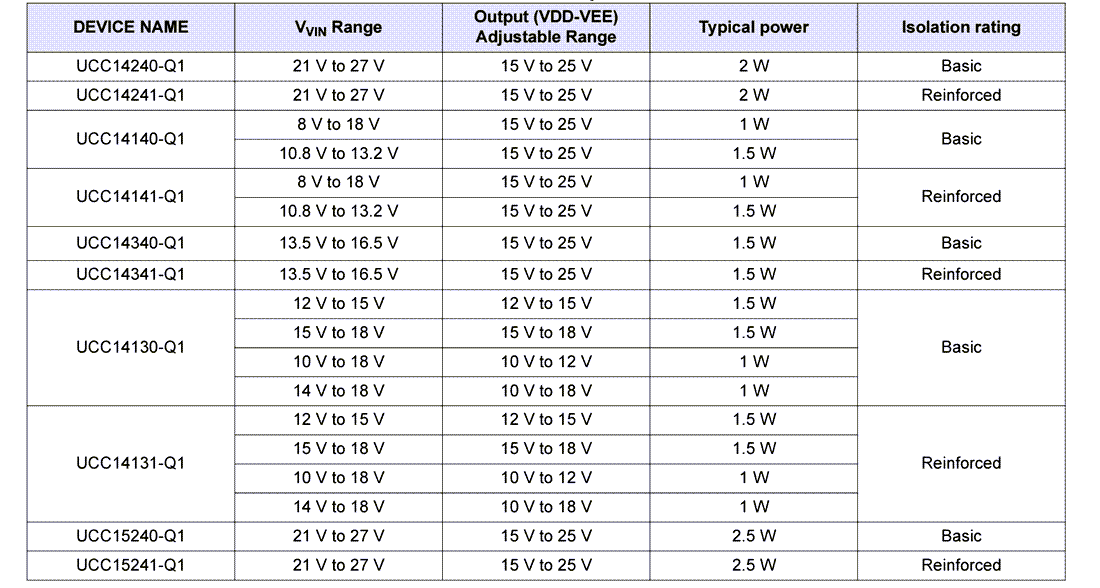

Device Comparison Table

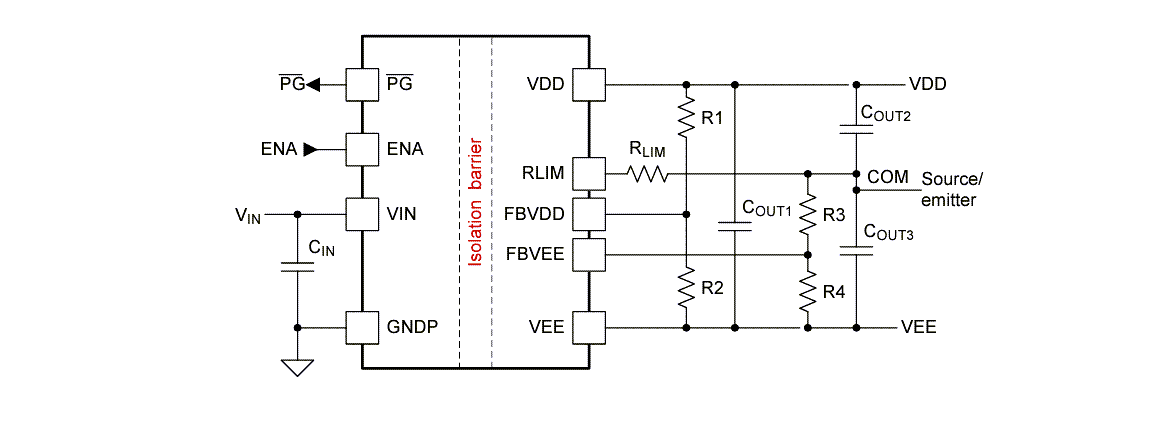

Simplified Application

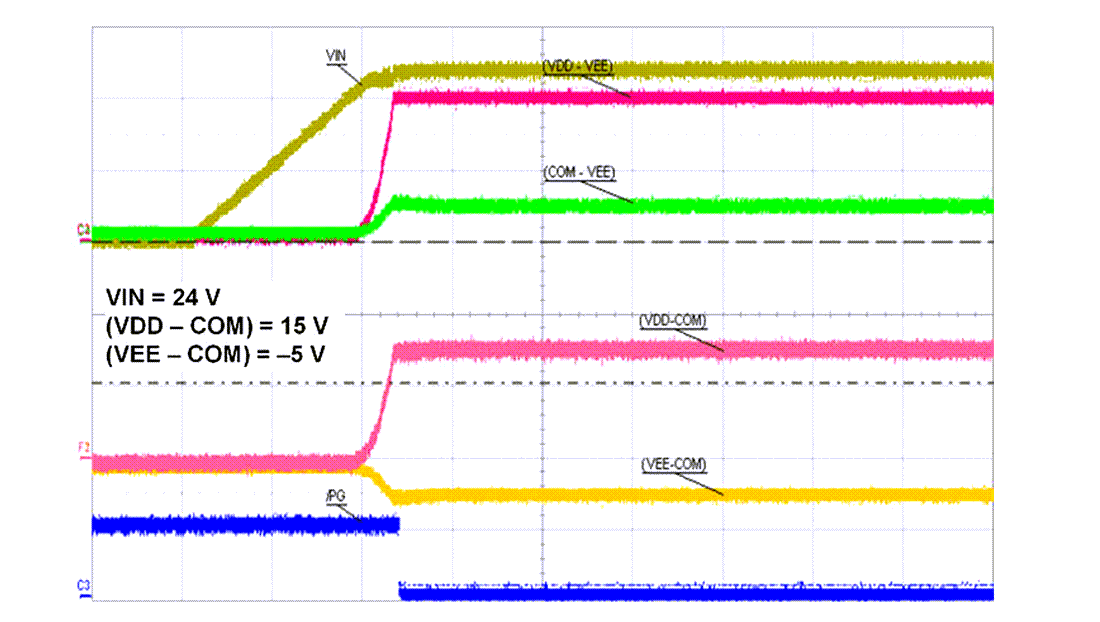

Typical Power-up Sequence

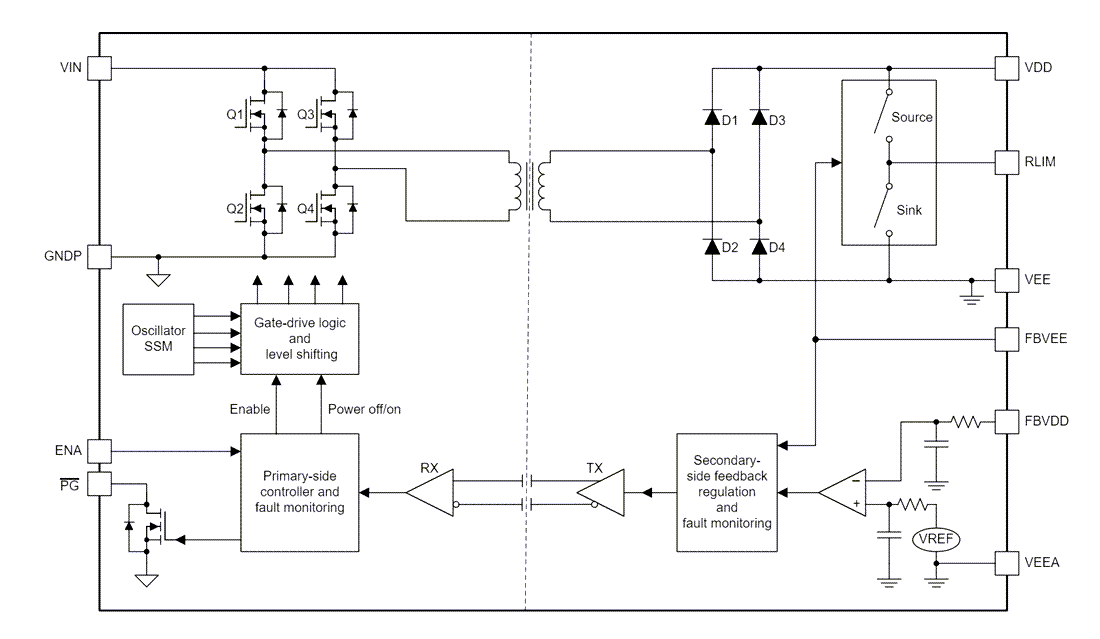

Functional Block Diagram
