Texas Instruments UCC14240EVM-052 Evaluation Module

Texas Instruments UCC14240EVM-052 Evaluation Module is designed to quickly and easily demonstrate the UCC14240-Q1 DC/DC converter module. The device features 1.5W of 3kV_RMS, isolated power in a low-profile, 3.5mm, wide-body SOIC integrated package. The TI UCC14240EVM-052 evaluation module operates from 21V < VIN < 27V and is configured for dual outputs of V_DD = +15V and V_EE = -5V. It demonstrates typical bias supply voltages required by IGBT and SiC gate driver ICs facilitated in high-voltage, industrial and automotive inverters, battery management systems, charging stations, and various isolated equipment applications.

Features

UCC14240-Q1 1.5W DC/DC converter module with dual, V_DD, V_EE outputs for SiC and IGBT gate driver IC bias
Transformer, power stage, and control fully integrated into a low-profile, 12.8mm x 7.55mm x 3.55mm wide body, 36-pin SOIC package
AEC-Q100, full rated power up to 105°C, 3.5pF isolation capacitance, SSM frequency modulation, and low electromagnetic emissions

3kV_RMS isolation, input OVP, output OCP, power limit, power good, enable and integrated soft start
The EVM demonstrates features most important to SiC and IGBT gate drive bias applications in an easy-to-use test platform

Texas Instruments UCC14240EVM-052 Evaluation Module

Features

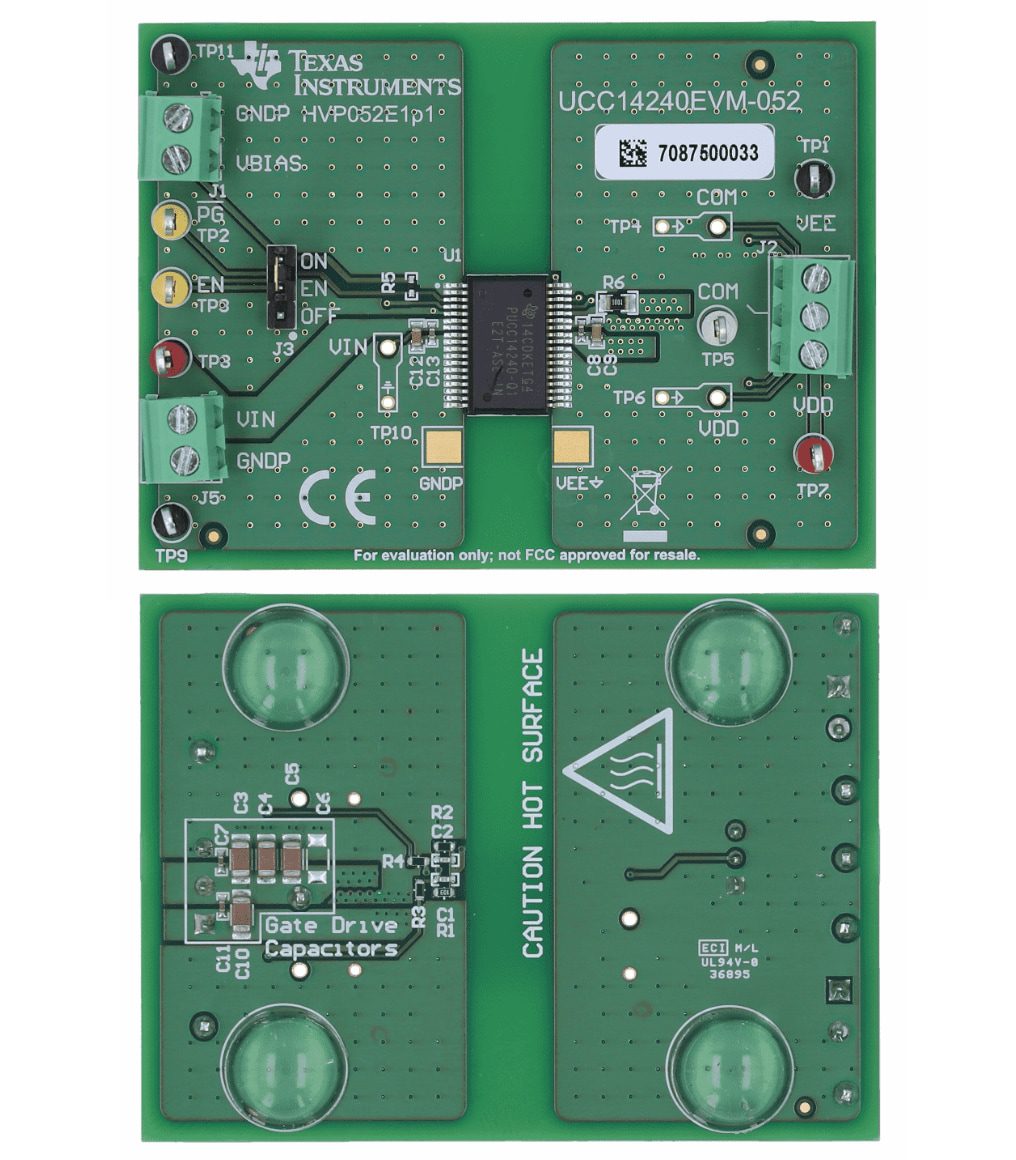

PCB Layout
