Texas Instruments UCC14141EVM-068 Evaluation Module

Texas Instruments UCC14141EVM-068 Evaluation Module demonstrates the UCC14141-Q1 DC/DC converter module, delivering 1.5W of 5kV_RMS, isolated power in a low profile, 3.5mm, wide-body SOIC integrated package. The TI UCC14141EVM-068 EVM can operate from 8 V_IN to 18 V_IN and is configured for dual outputs of V_DD = 18V and V_EE= -4V. The UCC14141EVM-068 exhibits typical bias supply voltages required by IGBT and SiC gate driver ICs in high voltage, industrial and automotive inverters, battery management systems, charging stations, and various isolated equipment applications.

Features

UCC14141-Q1 1.5W DC/DC converter module with dual V_DD, V_EE outputs for SiC and IGBT gate driver IC bias
Transformer, power stage, and control are fully integrated into a low-profile 12.8mm x 7.55mm x 3.55mm wide, 36-pin SOIC package
AEC-Q100, full rated power up to 105°C, 3.5pF isolation capacitance, SSM frequency modulation and low electromagnetic emissions
5kV_RMS isolation, input OVP, output OCP, power limit, power good, enable and integrated soft start
The EVM demonstrates features most important to SiC and IGBT gate drive bias application in an easy-to-use test platform

Texas Instruments UCC14141EVM-068 Evaluation Module

Features

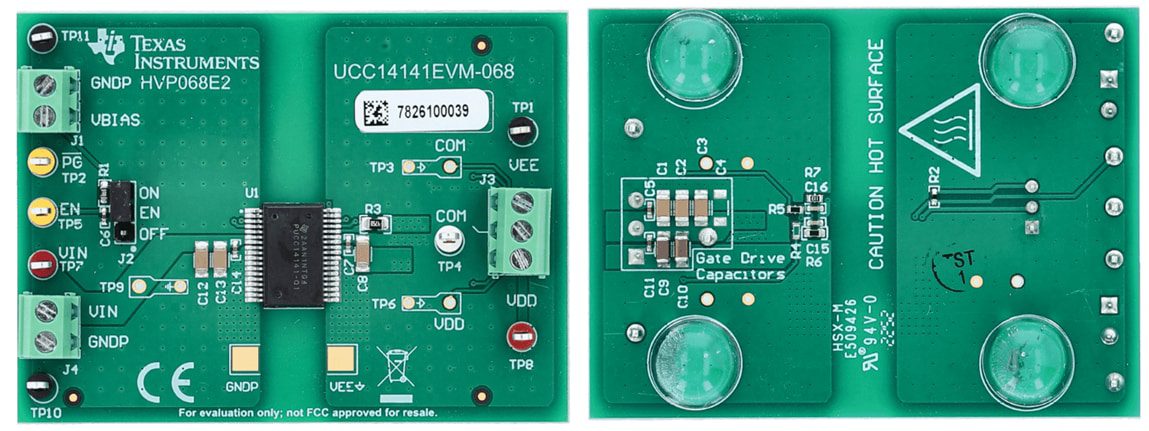

PCB Layout
