Texas Instruments UCC14131EVM-070 Evaluation Module

Texas Instruments UCC14131EVM-070 Evaluation Module is a platform for evaluating the performance of the UCC14131-Q1 DC/DC converter module. The UCC14131-Q1 delivers 1.5W of 5kV_RMS, isolated power in a low profile, 3.5mm, wide-body SOIC integrated package.

The TI UCC14131EVM-070 Evaluation Module operates from 11.5V_IN to 14V_IN and is configured for dual positive outputs of 12V and 5V. The UCC14131EVM-070 supports typical bias supply voltages required by GaN, Si, SiC, and IGBT gate driver ICs used in high-voltage, industrial and automotive inverters, battery management systems, charging stations, and various isolated equipment applications.

Features

UCC14131-Q1 1.5W DC/DC converter module with dual positive 12V and 5V output voltage for GaN, Si, SiC, and IGBT gate driver IC bias
Transformer, power stage, and control fully integrated into a low-profile, 12.8mm x 7.55mm x 3.55mm wide body, 36-pin SOIC package
AEC-Q100, full rated power up to 105°C, 3.5pF isolation capacitance, SSM frequency modulation and low electromagnetic emissions

5kV_RMS isolation, input OVP, output OCP, power limit, power good, enable and integrated soft start
The EVM demonstrates features most important to GaN, Si, SiC, and IGBT gate drive bias application in an easy-to-use test platform

Texas Instruments UCC14131EVM-070 Evaluation Module

Features

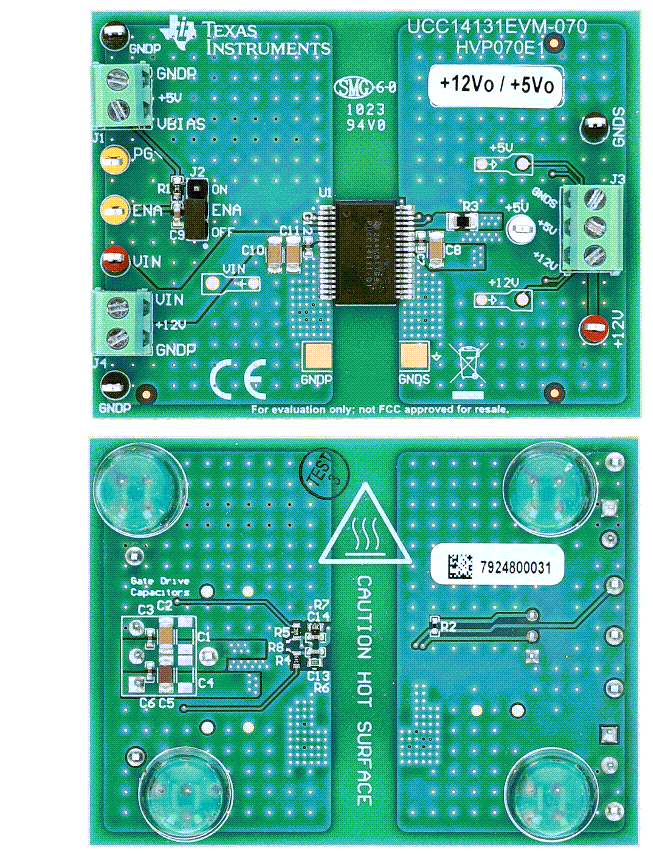

Layout
