Texas Instruments TUSB1146EVM Evaluation Module (EVM)

Texas Instruments TUSB1146EVM Evaluation Module (EVM) is configured to evaluate the operation of the TUSB1146 USB Type-C™ alternate mode Re-driving Switch. The TI TUSB1146EVM EVM can be used with a legacy DP source and or USB host system to evaluate the USB3.2 Gen 2 Type-C implementation. The TUSB1146EVM includes jumpers allowing for easy device configuration.

Features

  • Powered by VBUS or external power supply
  • Jumpers for easy device configuration
  • Can be used with any USB or DP source and device/sink

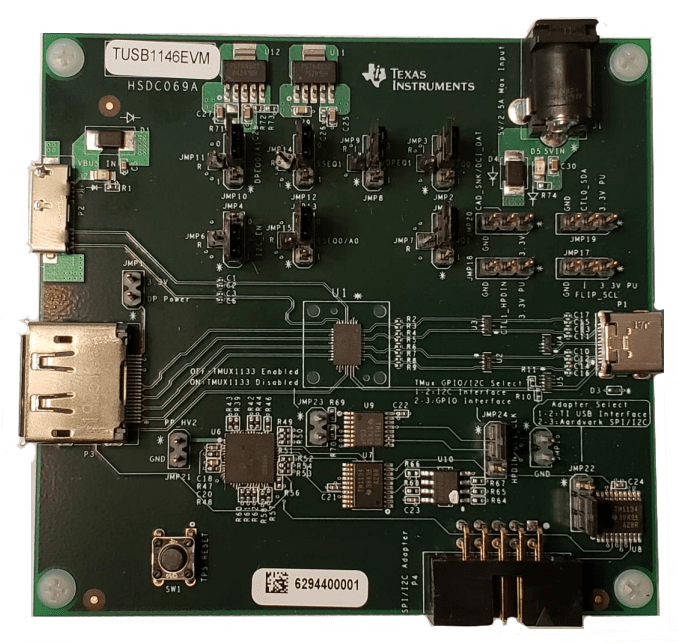

Overview

Texas Instruments TUSB1146EVM Evaluation Module (EVM)

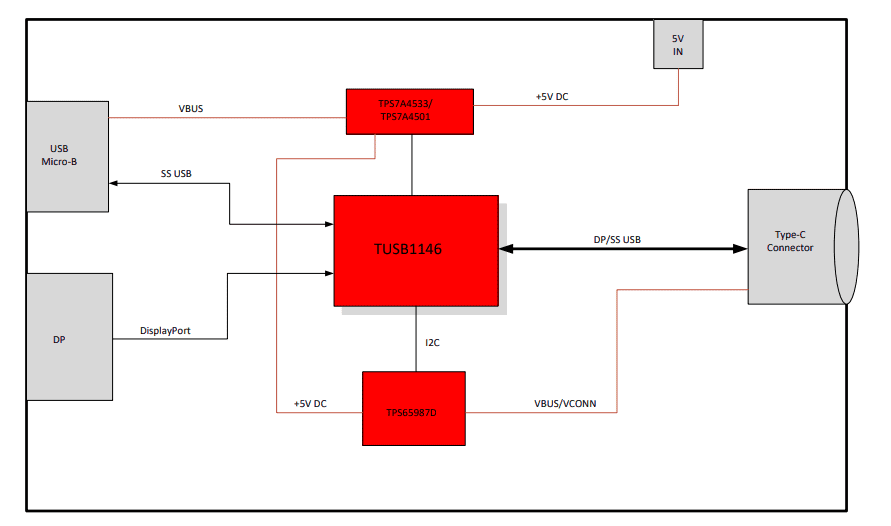

Block Diagram

Block Diagram - Texas Instruments TUSB1146EVM Evaluation Module (EVM)
