Texas Instruments TSW1418EVM Evaluation Module

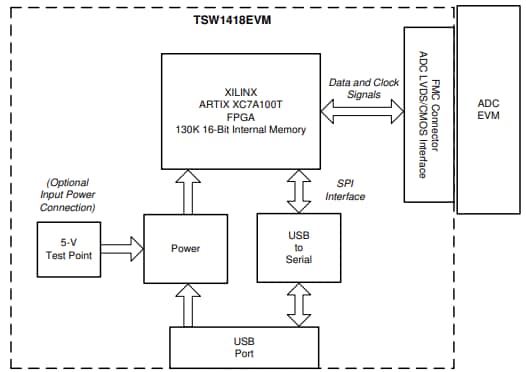

Texas Instruments TSW1418EVM Evaluation Module is an entry-level, low-cost, and FMC interface data capture card used to evaluate the performances of high-speed Analog-to-Digital Converters (ADCs). This module quickly evaluates high-speed Low-Voltage Differential Signaling (LVDS) data converter performance using high-speed data converter pro software (DATACONVERTERPRO-SW). The TSW1418EVM is dynamically configurable to support LVDS speeds up to 950Mbps and up to 18 data outputs using Xilinx^® Artix-7 FPGA-based firmware. This evaluation module captures and evaluates data samples from ADC EVMs with the accompanying High-Speed Data Converter Pro Graphic User Interface (HSDC Pro GUI).
