Texas Instruments TPSM8S6C24SEVM Evaluation Module

Texas Instruments TPSM8S6C24SEVM Evaluation Module is designed to evaluate the TPSM8S6C24 device and gain familiarity with the device down to PMBus^® command and extended write protection. The TPSM8S6C24 is a configurable single-output buck converter module. This evaluation module operates at a 5V to 16V input voltage range. The TPSM8S6C24SEVM evaluation board uses a nominal 12V bus to produce a regulated 1.2V output voltage at up to 35A of load current. This evaluation module allows programming and monitoring via the PMBus interface. The TPSM8S6C24SEVM board is used in data centers, rack servers, active antenna systems, remote radios, baseband units, automated test equipment, MRIs, ASIC, SoC, and FPGAs.

Features

Evaluate the TPSM8S6C24 power module using the provided test points on the EVM
Evaluate the TPSM8S6C24 device configuration and monitoring using Fusion GUI
Regulated 1.2V output voltage

Up to 35A DC output load current
Convenient test points for probing critical waveforms
PMBus connector for easy connection with the USB adaptor

Applications

Active antenna systems
Data center switches and rack servers
Remote radios and baseband units

Automated test equipment, CT, PET, and MRI
ASIC, SoC, FPGA, DSP core, and I/O voltages

Texas Instruments TPSM8S6C24SEVM Evaluation Module

Features

Applications

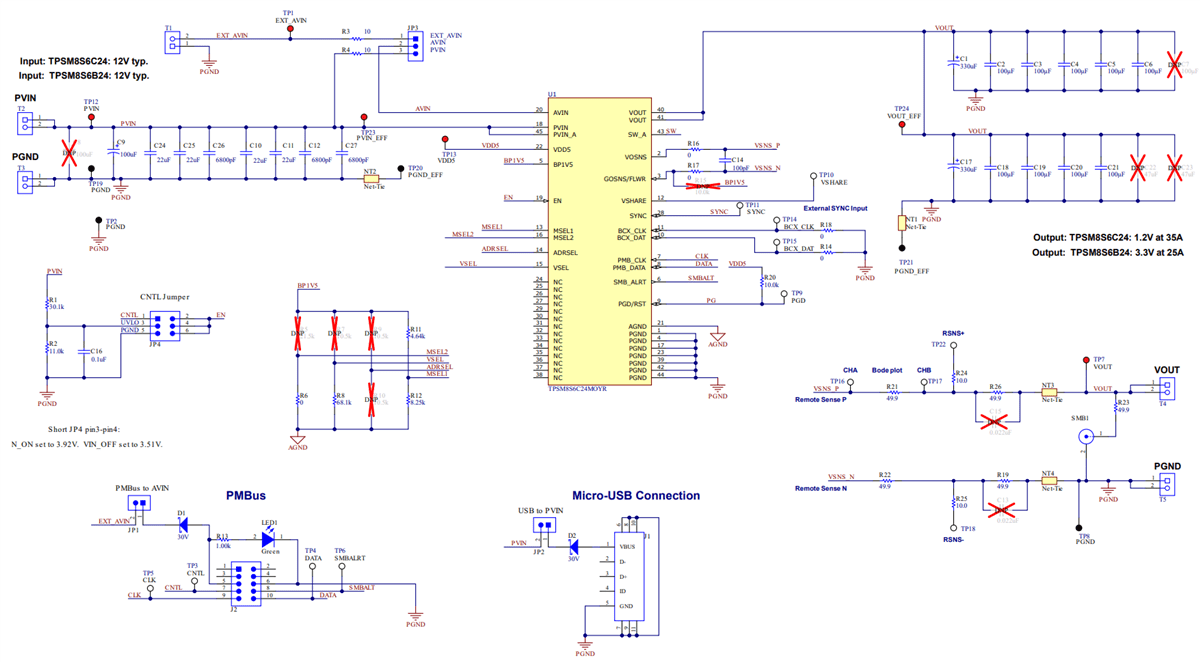

Schematic
