Texas Instruments TPSM861253EVM Evaluation Module

Texas Instruments TPSM861253EVM Evaluation Module is a fully assembled and tested circuit for evaluating the TPSM861253. The TPSM861253 is a simple, easy-to-use, 1A synchronous step-down buck module. The TI TPSM861253EVM has an operating range from 3V to 17V input (12V nominal) and supplies a 3.3V output at 1A. The TPSM861253EVM includes AC signal injection terminals for feedback loop measurements.

Features

3.8V to 17V Input voltage range
Fixed 3.3V output voltage
Up to 1A output current

FCCM mode
Fast transient response
3.3mm x 4mm RDX package

Applications

Merchant network and server PSU
AC/DC adapters/PSU

Factory automation and control
Test and measurement

Kit Contents

One TPSM861253EVM board
EVM disclaimer Read Me

Texas Instruments TPSM861253EVM Evaluation Module

Features

Applications

Kit Contents

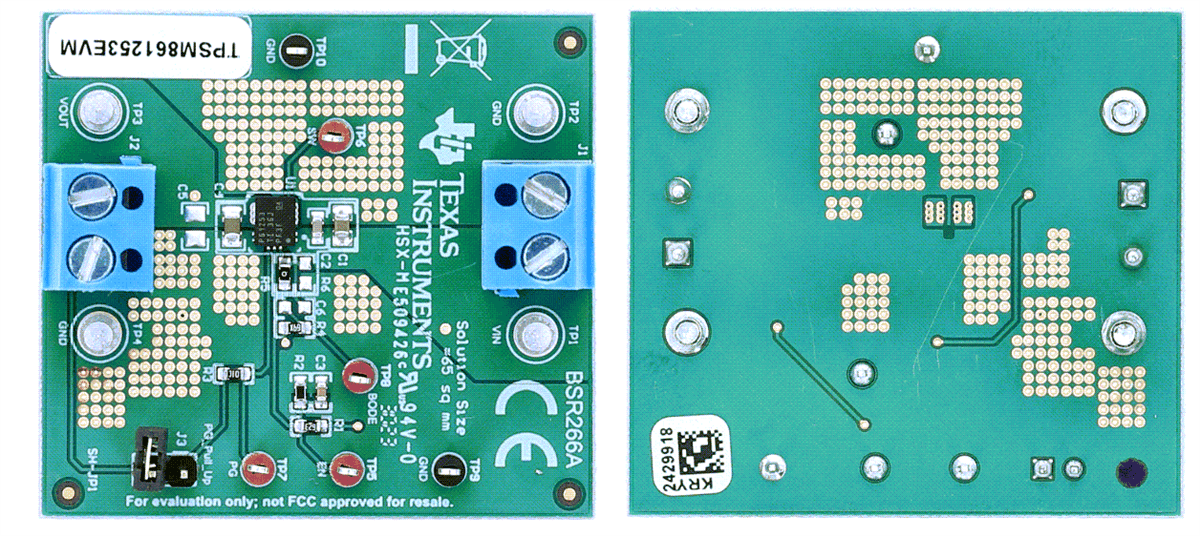

Layout

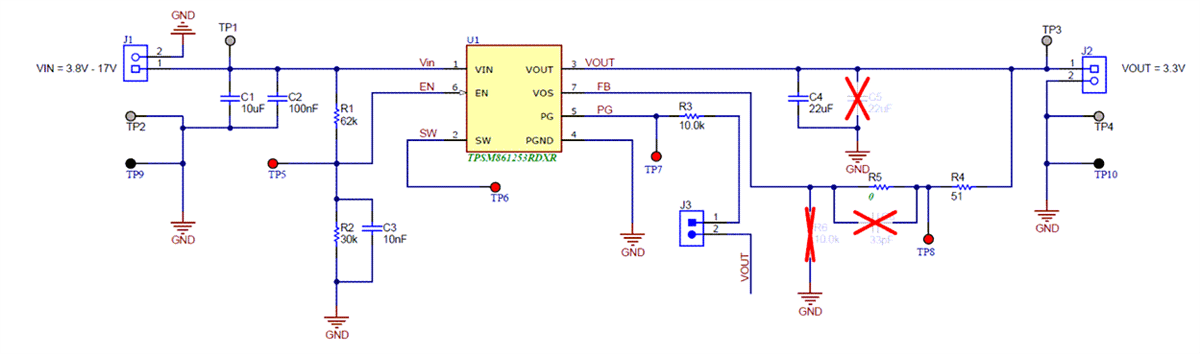

Schematic Diagram
