Texas Instruments TPSM82830xAEVM Evaluation Modules

Texas Instruments TPSM82830xAEVM Evaluation Modules are simple, easy-to-use synchronous step-down DC/DC power modules with integrated inductors. The TPSM82830xAEVM Evaluation Modules offer three different output current versions of TPSM828301AEVM for 1A, TPSM828302AEVM for 2A, and TPSM828303AEVM for 3A. The TI TPSM82830xAEVM Modules regulate the output voltage to 1.8V, with the input voltage ranging from 2.25V to 5.5V.

Features

2.25V to 5.5V input voltage range
0.5V to 4.5V adjustable output voltage
1% FB voltage accuracy (-40°C to 125°C T_J)
DCS-Control topology
Optimized EMI performance
Facilitates CISPR 11/32 compliance
- Integrated on-chip noise-filtering capacitors
- Measurements according to CISPR are available

2.0MHz switching frequency
Excellent transient response
MODE pin, power-good output
Supports 1.2V GPIO
100% duty cycle for the lowest dropout
Active output discharge
Thermal shutdown protection
Hiccup or latch-off OCP/OVP

Applications

Factory automation and control
Industrial PC

ASIC, SoC, and MCU supply
Generic point of load

Texas Instruments TPSM82830xAEVM Evaluation Modules

Features

Applications

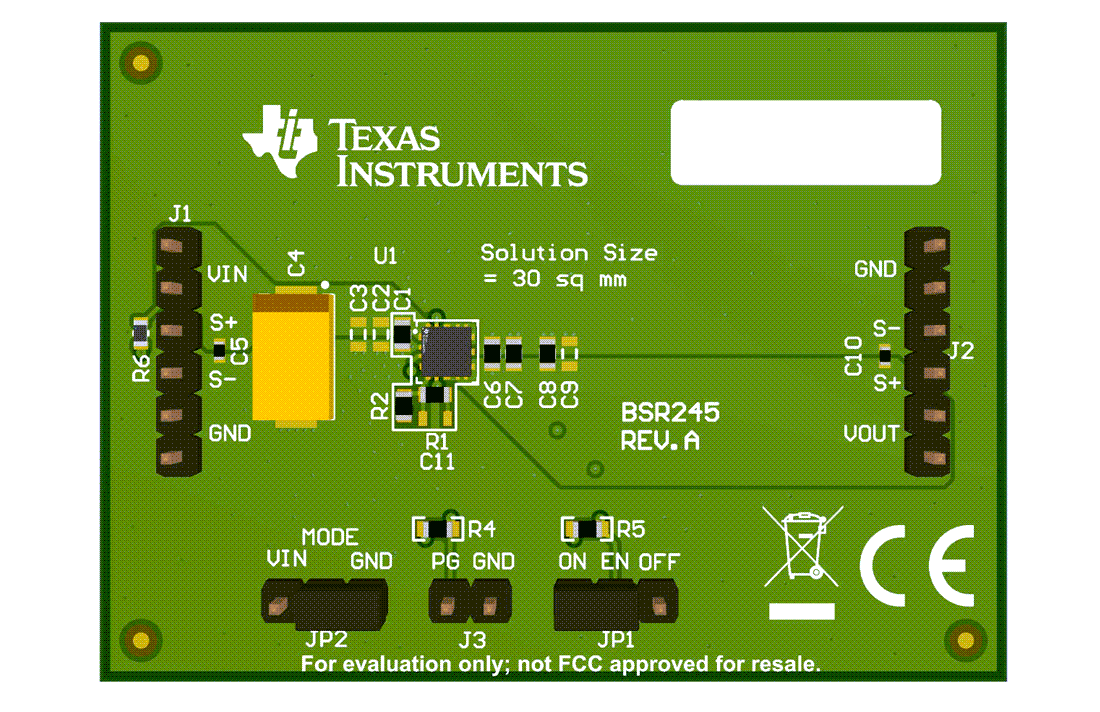

Layout
