Texas Instruments TPSM560R6 Power Module

Texas Instruments TPSM560R6 Power Module offers a highly integrated 600mA power solution combining a 60V input, step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives in a thermally-enhanced QFN package.

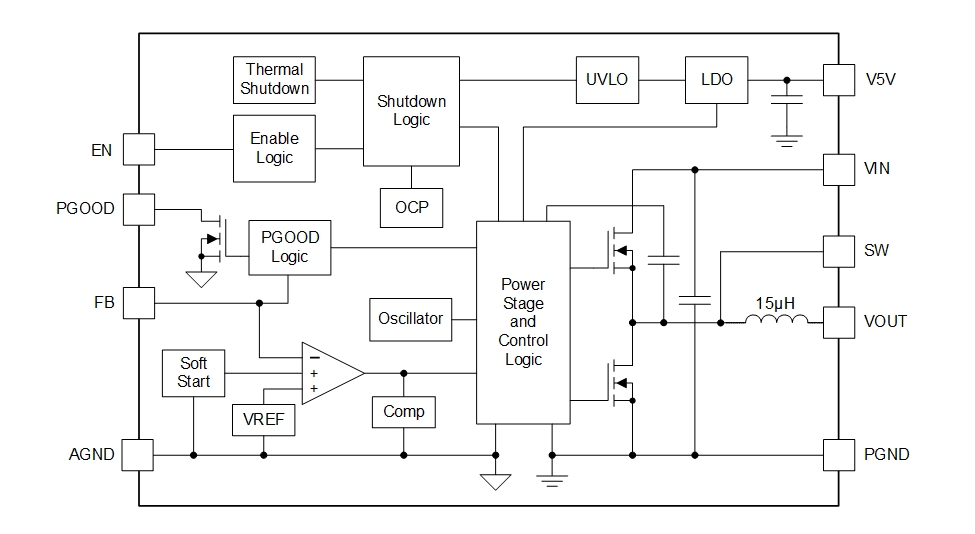

Features

Functional safety-capable
- Documentation available to aid functional safety system design
5.0mm × 5.5mm × 4.0mm Enhanced HotRod™ QFN
- Excellent thermal performance: up to 18W output power at 85°C, no airflow
- Standard footprint: single large thermal pad and all pins accessible from the perimeter
Designed for reliable and rugged applications
- Wide input voltage range of 4.2V to 60V
- Input voltage transient protection up to 66V
- Operating junction range of –40°C to +125°C
- EXT-suffix junction range of –55°C to +125°C
Fixed 400kHz switching frequency

FPWM mode of operation
Optimized for ultra-low EMI requirements
- Integrated shielded inductor and high-frequency bypass capacitors
- Meets EN55011 EMI standards
- Spread spectrum option reduces emissions
26µA nonswitching quiescent current
Monotonic start-up into pre-a biased output
No loop-compensation or bootstrap components
Precision enable and input UVLO with hysteresis
Thermal shutdown protection with hysteresis
Create a custom regulator design using WEBENCH® Power Designer

Applications

Field transmitters and sensors, PLC modules
Thermostats, video surveillance, HVAC systems
AC and servo drives, rotary encoders

Industrial transport, asset tracking
Negative output applications
