Texas Instruments TPSI3052Q1EVM Evaluation Module

Texas Instruments TPSI3052Q1EVM Evaluation Module is a two-copper layer board designed to evaluate the functionality of the TPSI3052-Q1. The TPSI3052-Q1 is a 5kV_RMS reinforced isolated switch driver with a 1.5A peak source current and 3A peak sink current. The TI TPSI3052Q1EVM evaluation module contains multiple test points for every pin and a voltage supply to ensure correct functionality. The device is qualified for automotive applications AEC-Q100.

Features

Qualified for automotive applications AEC-Q100
Test Points are available for every pin and voltage supply to ensure correct functionality
External 750V DC back-to-back MOSFETs on EVM rated for 500V DC
No isolated secondary supply required
Drives external power transistors or SCRs

5kV_RMS reinforced isolation
15V gate drive with 1.5A peak source current and 3A peak sink current
Up to 50mW supply for external auxiliary circuitry
Supports AC or DC switching
Supports two-wire or three-wire modes
Seven levels of power transfer, resistor selectable

Applications

Solid State Relay (SSR)
Hybrid, electric, and powertrain systems

Building automation
Factory automation and control

Texas Instruments TPSI3052Q1EVM Evaluation Module

Features

Applications

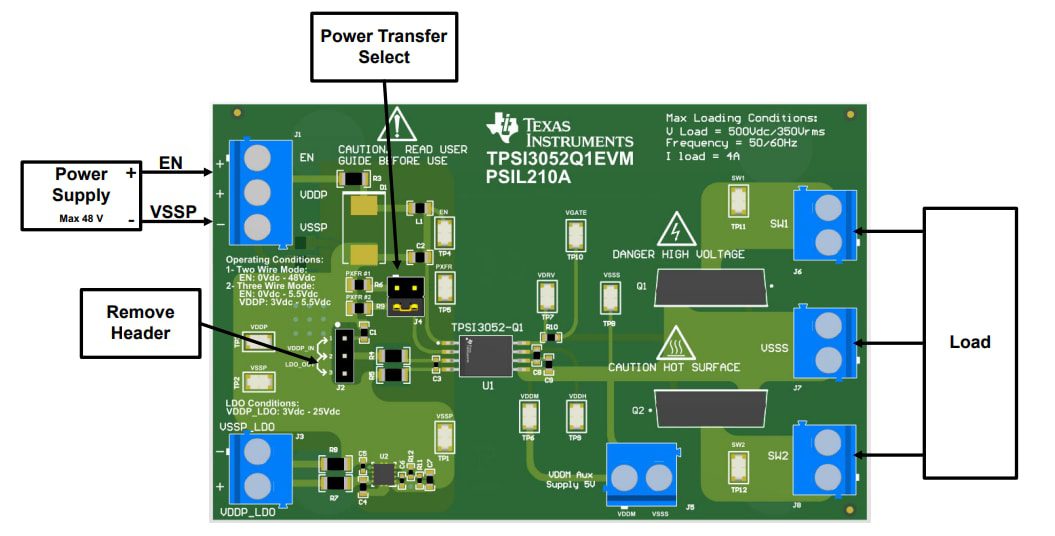

Two-Wire Mode Setup

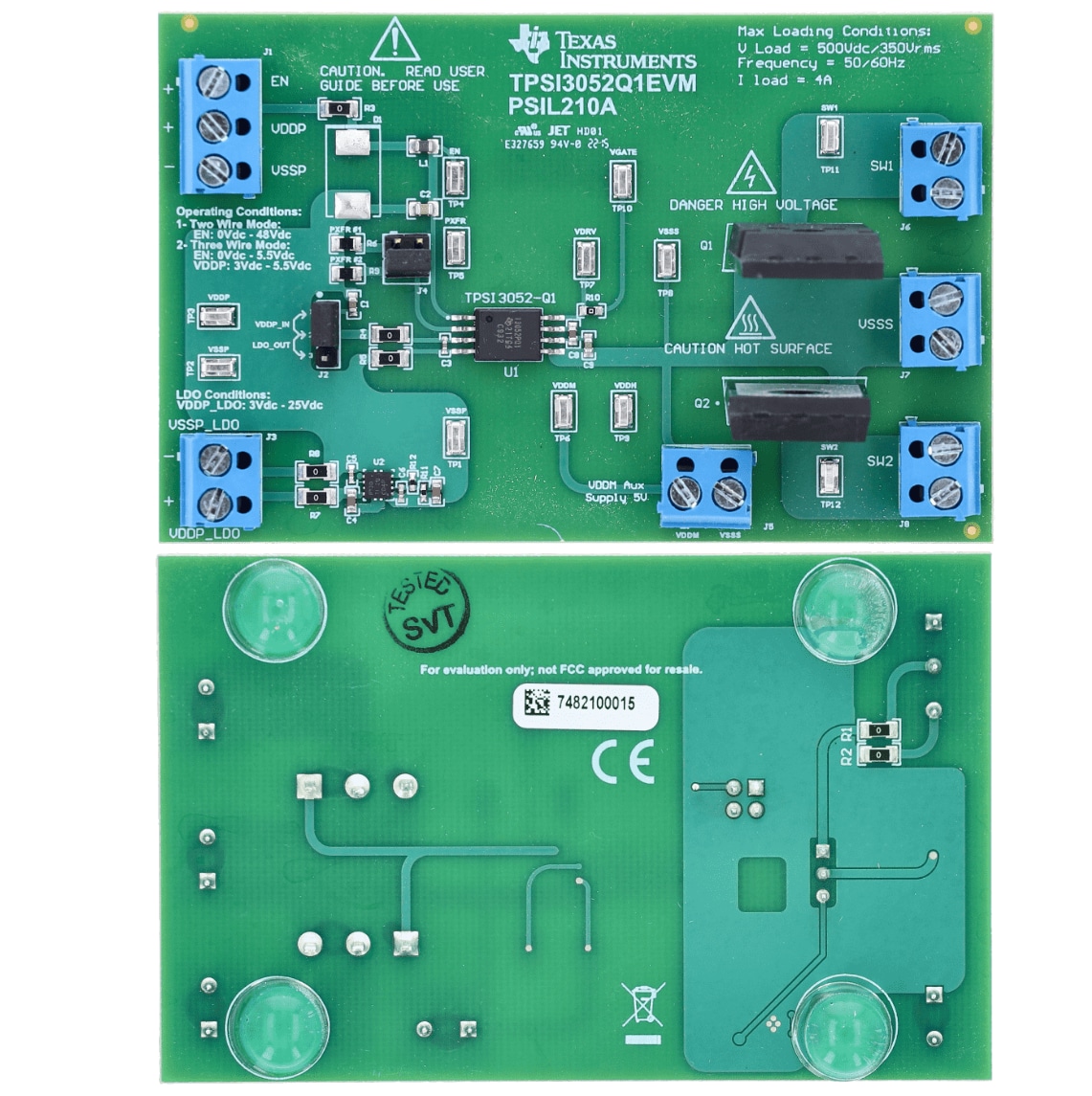

PCB Layout
