Texas Instruments TPS92629Q1EVM Evaluation Module

Texas Instruments TPS92629Q1EVM Evaluation Module demonstrates the performance of the TPS92629-Q1 LED driver. The TPS92629-Q1 is a single-channel LED driver with full LED diagnostic and multi-fault reports for automotive lighting applications. The TI TPS92629-Q1 can help designers with the thermal design challenge in automotive lighting end equipment.

Features

LED short-to-GND, short-to-battery, open-circuit detection and auto-recovery
Multi-fault report out through the different voltage levels of short-to-GND, short-to-battery, open-circuit, and thermal shutdown

Open fault mask during low-dropout mode
Analog and PWM dimming
Thermal sharing with external resistors when the supply voltage is high

Applications

Automotive exterior small light, including blind spot detection indicator, door handle, and charging inlet
Automotive interior light, including overhead console and reading lamp

Automotive exterior rear light, including rear lamp, center high mounted stop lamp, and side marker
General-purpose LED driver applications

Texas Instruments TPS92629Q1EVM Evaluation Module

Features

Applications

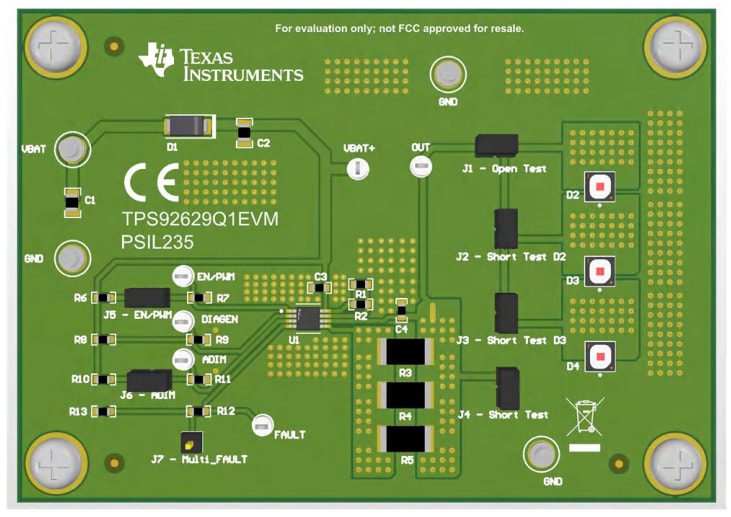

Layout

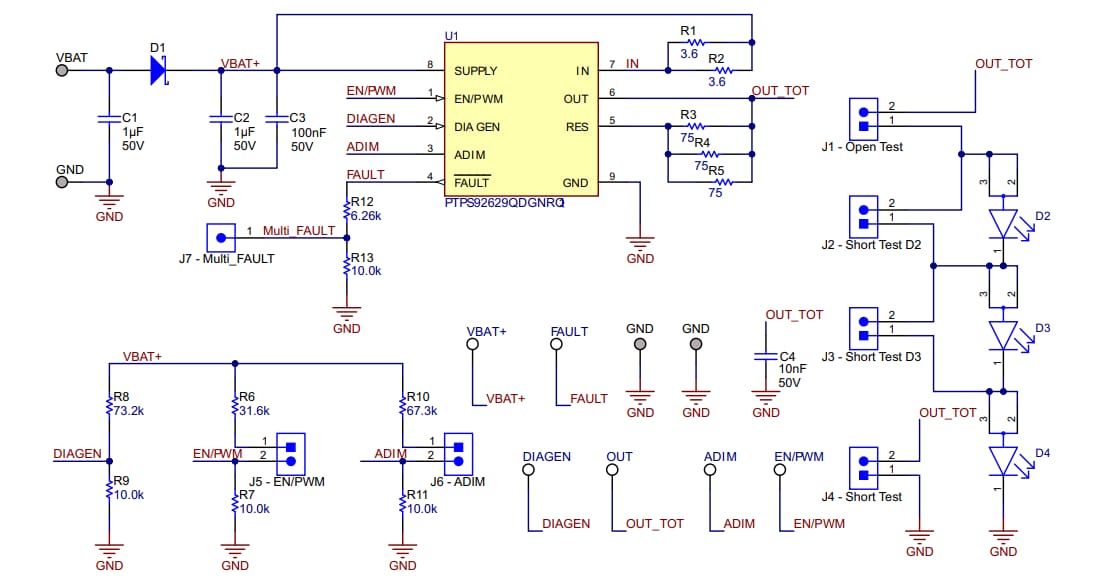

Schematic
