Texas Instruments TPS92623-Q1EVM Evaluation Module

Texas Instruments TPS92623-Q1EVM Evaluation Module is designed to evaluate the TPS92623-Q1 automotive three-channel high-side LED driver with thermal sharing. This module features a diagnostic function to avoid false open fault. The TPS92623-Q1EVM module features include LED short and open and single LED short detection and auto-recover, open fault mask during dropout mode, and thermal sharing.

Features

High side LED driver
Three channels with 150mA maximum current

Thermal sharing function
Diagnostic function to avoid false open fault

Applications

Automotive exterior rear light:
- Rear lamp, Center High Mounted Stop Lamp (CHMSL), and side marker
Automotive exterior small light:
- Door handle, blind spot detection indicator, and charging inlet

Automotive interior light:
- Overhead console and reading lamp
General-purpose LED driver applications

Texas Instruments TPS92623-Q1EVM Evaluation Module

Features

Applications

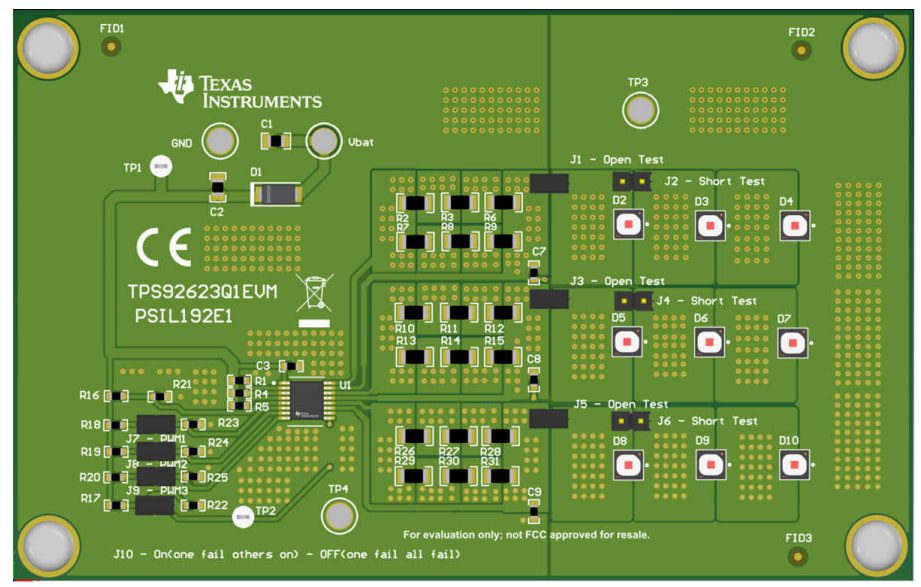

Board View
