Texas Instruments TPS92622Q1EVM Evaluation Module

Texas Instruments TPS92622Q1EVM Evaluation Module is designed for the evaluation of the TPS92622-Q1. The TPS92622-Q1 is a linear two-channel LED driver with full LED diagnostic for automotive lighting applications. The TPS92622-Q1 can help designers efficiently deal with a thermal design challenge, and the TI TPS92622Q1EVM can help validate those features.

Features

LED short and open detection and auto-recover
Open fault mask during dropout mode
Thermal sharing with external resistor when the supply voltage is high

Applications

Automotive exterior small light
- Door handle
- Blind spot detection indicator
- Charging inlet
- Automotive interior light
- Overhead console
- Reading lamp

Automotive exterior rear light
- Rear lamp
Center high-mounted stop lamp (CHMSL)
- Side marker
General-purpose LED driver applications

Texas Instruments TPS92622Q1EVM Evaluation Module

Features

Applications

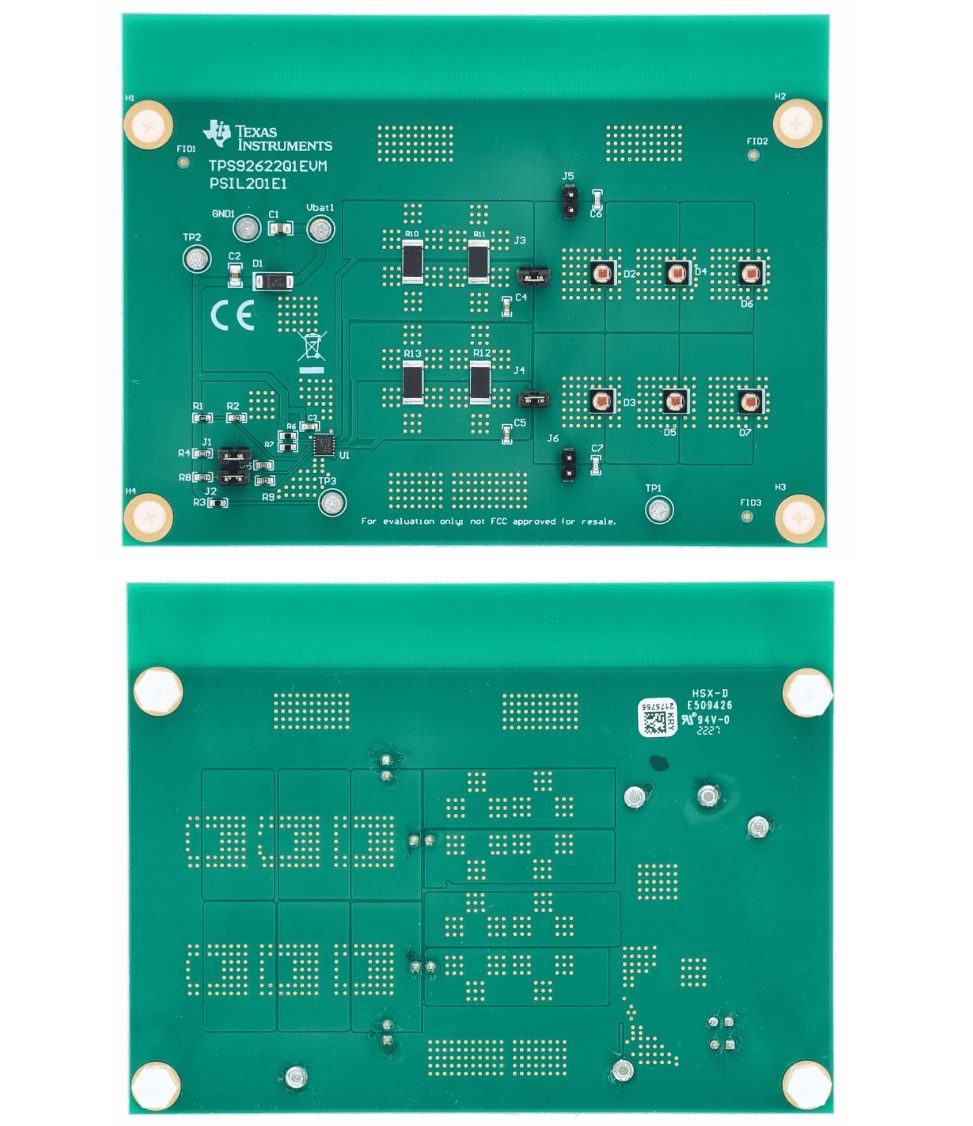

PCB Layout
