Texas Instruments TPS92520EVM-074 Converter Evaluation Module

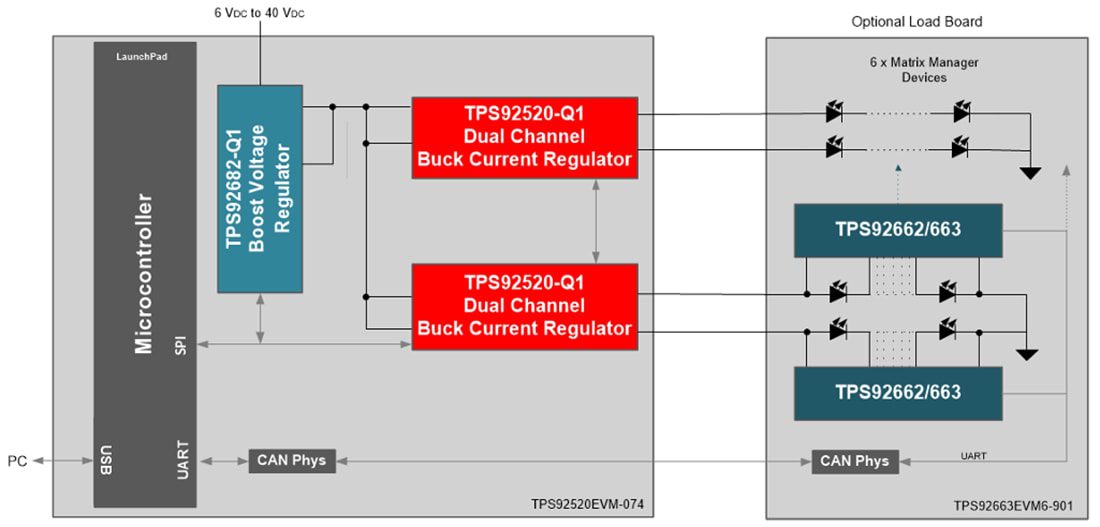

Texas Instruments TPS92520EVM-074 Converter Evaluation Module (EVM) features a two-phase, constant voltage (CV) boost regulator based on the TPS92682-Q1 dual channel controller. It powers two TPS92520-Q1 ICs, providing four current regulated channels of up to 1.6 Amps and 50W per channel (total output power limited to 100W). The TPS92520-Q1 and TPS92682-Q1 are controlled via a SPI interface. The Boost is designed to operate with an input voltage from 6V to 42V. It has a total power output of 100W with a maximum programmed output voltage of 50V. The Texas Instruments TPS92520EVM-074 is monitored and controlled via the serial interface bus by the required companion evaluation module (MSP-EXP432E401Y MCU LaunchPad™ Development Kit). The TPS92520-Q1 Evaluation Software provides a computer-based GUI, allowing users to control the buck output current(s), boost output voltage, and monitor the fault reporting features.
