Texas Instruments TPS8804EVM AFE Evaluation Module (EVM)

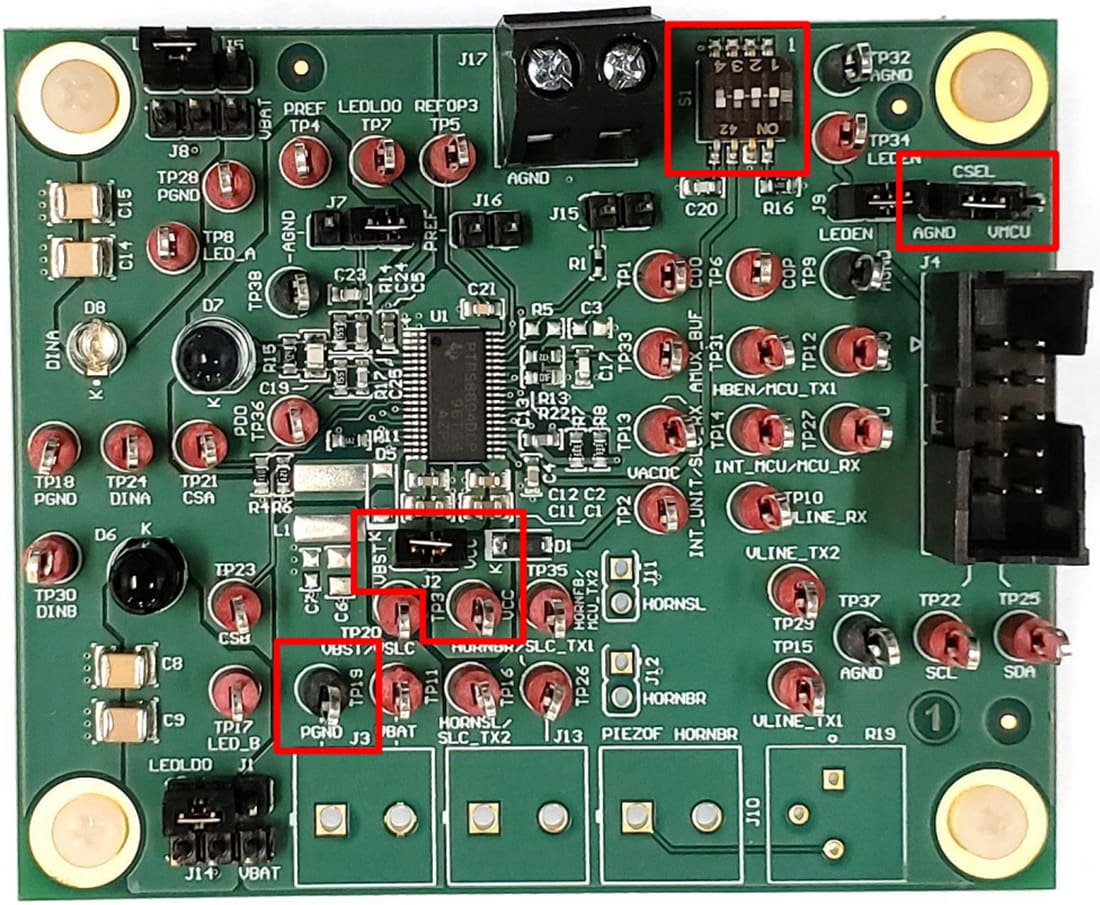

Texas Instruments TPS8804EVM AFE Evaluation Module (EVM) is used to evaluate the TPS8804 smoke and CO detection analog front end and power management IC. The evaluation module allows for easy connection from the TPS8804 to a user-supplied photoelectric chamber and carbon monoxide sensor. The TPS8804 GUI interfaces with the evaluation module to quickly evaluate the photo amplifier, LED driver, and CO amplifier performance, as well as static system power consumption. For a more thorough evaluation, an external microcontroller can be connected to the evaluation module to create a prototype smoke detection system.
