Texas Instruments TPS7H6003EVM-CVAL Evaluation Module

Texas Instruments TPS7H6003EVM-CVAL Evaluation Module accepts up to a 150V input, allowing users to test the reliability of the TPS7H6003-SP by driving the EPC2307. The TI TPS7H6003EVM-CVAL evaluation module is set up to operate the TPS7H6003-SP in PWM mode by default. The TPS7H6003-SP then receives an input of one switching signal and internally develops a complementary signal. This feature can be changed to the IIM mode, in which the two outputs work independently of one another.

Features

Selectable input interlock protection in independent input mode
Split outputs for adjustable turn-on and turn-off times
25ns typical propagation delay in independent input mode
1.5A peak source, 3A peak sink current

Up to 150V operation on the PVIN input
PWM and IIM modes supported
Large pads to place own inductors and capacitors
Integrated dead time for PWM mode

Applications

Communications payload
Command and data handling

Satellite electrical power system
Space satellite point of load supply for FPGA core voltage rails

Texas Instruments TPS7H6003EVM-CVAL Evaluation Module

Features

Applications

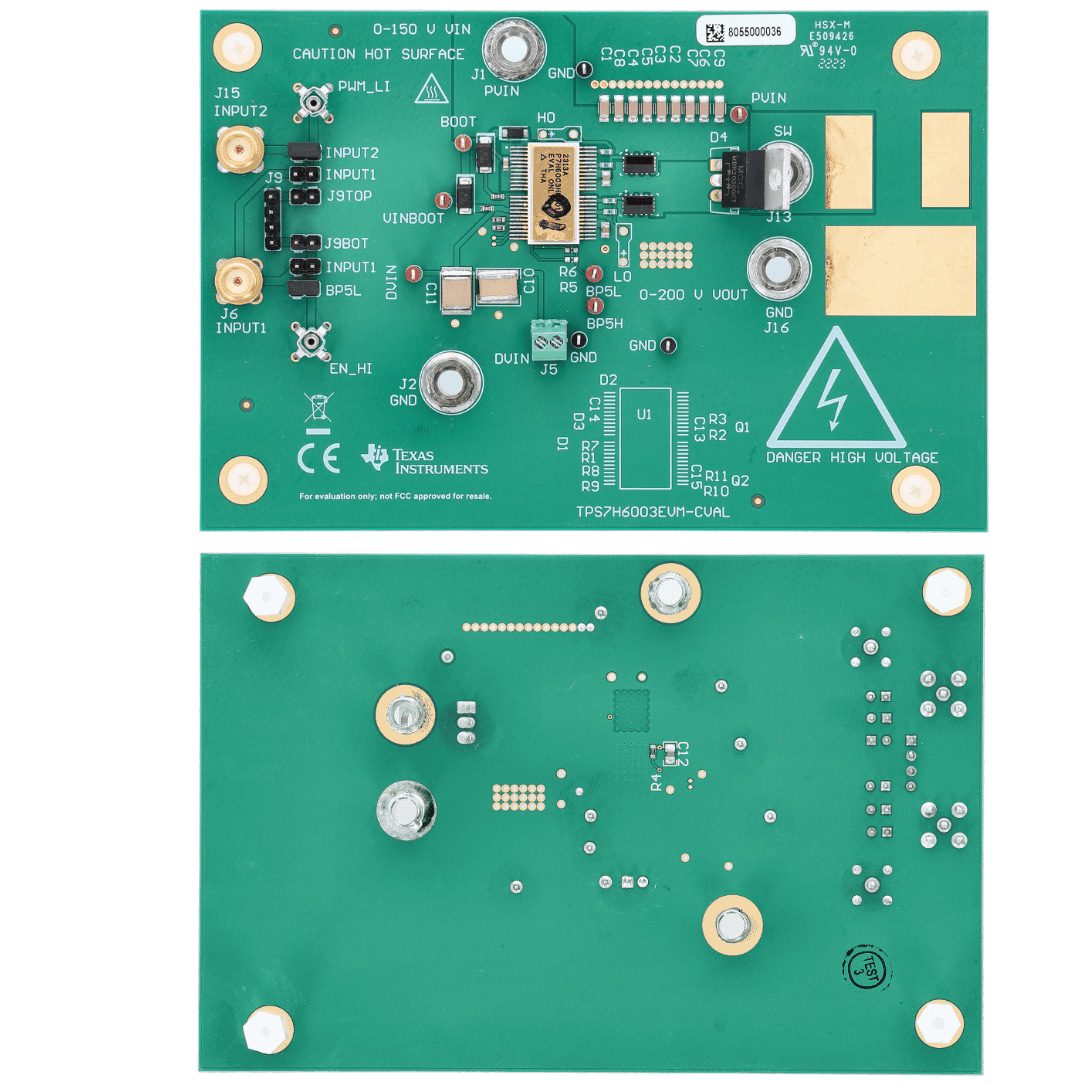

Layout
