Texas Instruments TPS7H2201EVM eFuse Evaluation Module (EVM)

Texas Instruments TPS7H2201EVM eFuse Evaluation Module (EVM) demonstrates the operation of a single TPS7H2201 eFuse (Radiation Tolerant/Hardened Plastic). The Texas Instruments TPS7H2201EVM provides footprints that can be populated with additional components for testing customized configurations, such as parallel or redundant eFuses.

Features

  • Flexible configuration options, including single- and parallel-device circuits
  • Customizable soft start, current limit, current limit timers, enable threshold, undervoltage threshold, and capacitance

Kit Contents

  • TPS7H2201EVM evaluation module
  • Evaluation kit user’s guide

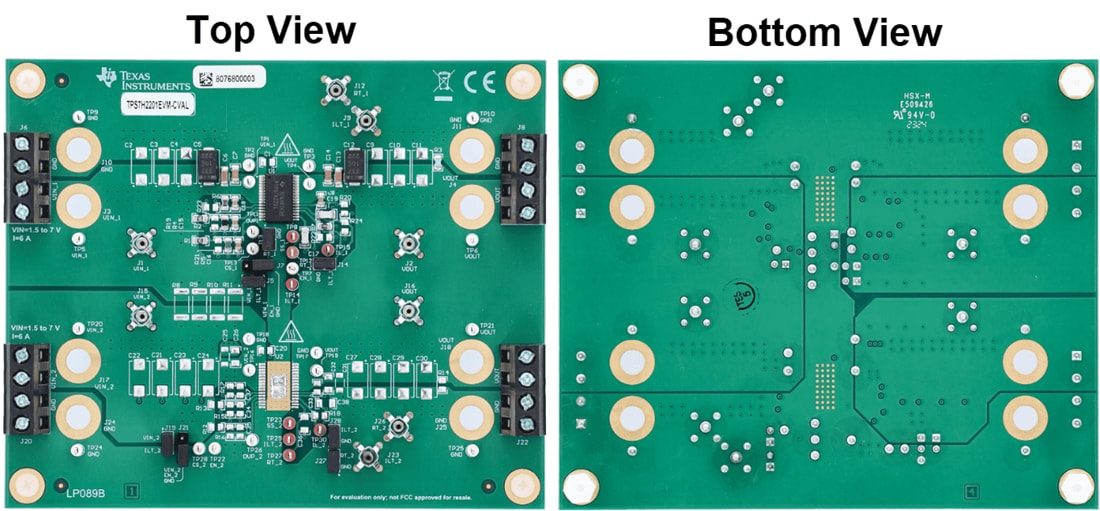

Board Layout

Mechanical Drawing - Texas Instruments TPS7H2201EVM eFuse Evaluation Module (EVM)
