Texas Instruments TPS65219EVM PMIC Evaluation Module (EVM)

Texas Instruments TPS65219EVM PMIC Evaluation Module (EVM) is a fully assembled platform for evaluating the performance and functionality of the TPS65219 power management IC (PMIC). The Texas Instruments TPS65219EVM evaluation module includes an onboard USB-to-I²C adapter, power terminals, jumpers for all DC regulator inputs and outputs, and test points for common measurements.

Features

Evaluation of TPS65219 device features and performance
Onboard MSP430 MCU to communicate with the PMIC

Programmable output voltages
Programmable power-up and power-down sequencing

Required Equipment

Evaluation module
- TPS65219 evaluation board
Power supply
- A 5V DC power supply is required to power the evaluation module
- If loading the evaluation module, a 10A limit or higher is recommended

Host computer
- A computer with an available USB port is required to make use of the evaluation module software
- The evaluation module software runs on the computer and communicates with the evaluation module via a USB-A to micro-B cable

Texas Instruments TPS65219EVM PMIC Evaluation Module (EVM)

Features

Required Equipment

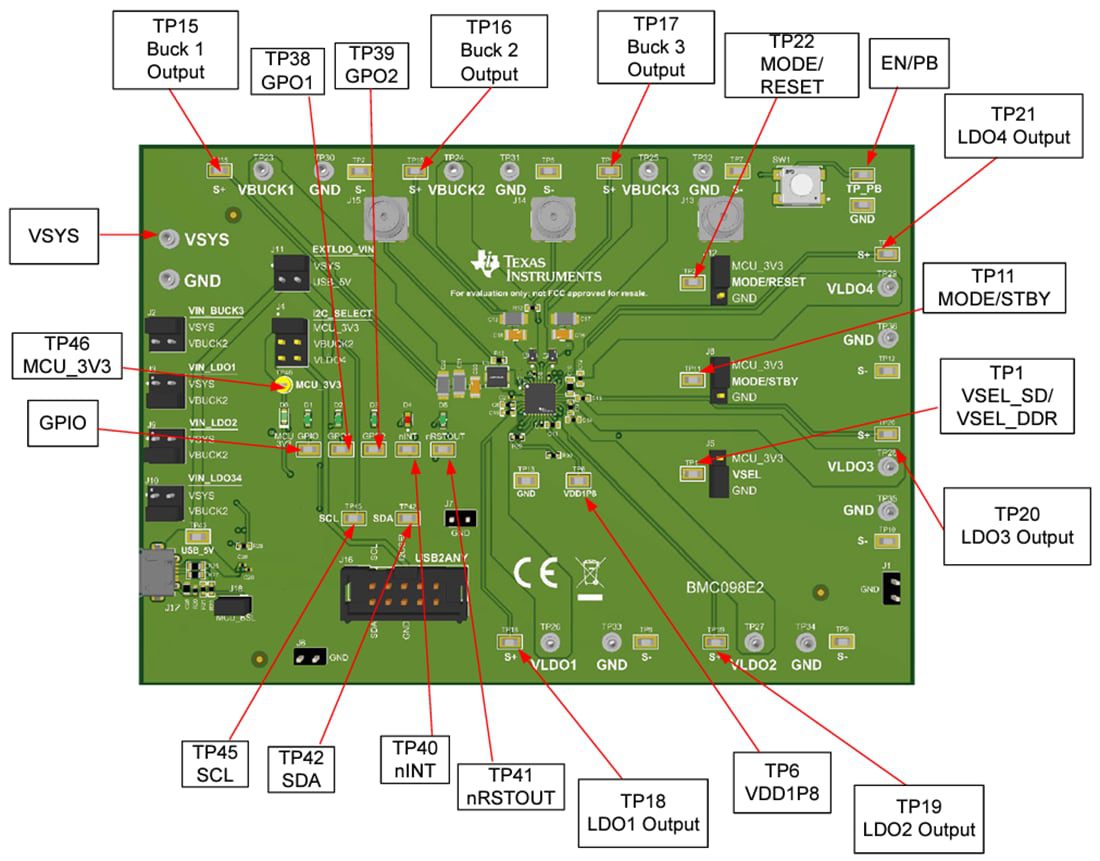

Board Test Points
