Texas Instruments TPS65219EVM NVM Programming Boards

Texas Instruments TPS65219EVM NVM Programming Boards are designed to demonstrate the TPS65219 in the RHB and RSM packages. The TI TPS65219 non-volatile memory (NVM) programming board implements the MSP430F5529 MCU for customer programming. The boards include power terminals, jumpers for all DC regulator inputs and outputs, and test points for common measurements.

The TPS65219EVM-SKT programming board supports a socket for programming units before soldering down on a prototype board. TPS65219EVM-SKT can be used to program the RHB 5mm x 5mm (0.5mm pitch) package, and the TPS65219EVM-RSM can be used to program the RSM 4mm x 4mm (0.4mm package).

Features

PMIC non-volatile memory (NVM) programming
On-board MSP430 MCU to communicate with the PMIC by I²C
Programmable output voltages

Programmable power-up and power-down sequencing
Programmable multifunction digital pins

Texas Instruments TPS65219EVM NVM Programming Boards

Features

TPS65219EVM-SKT PCB Layout

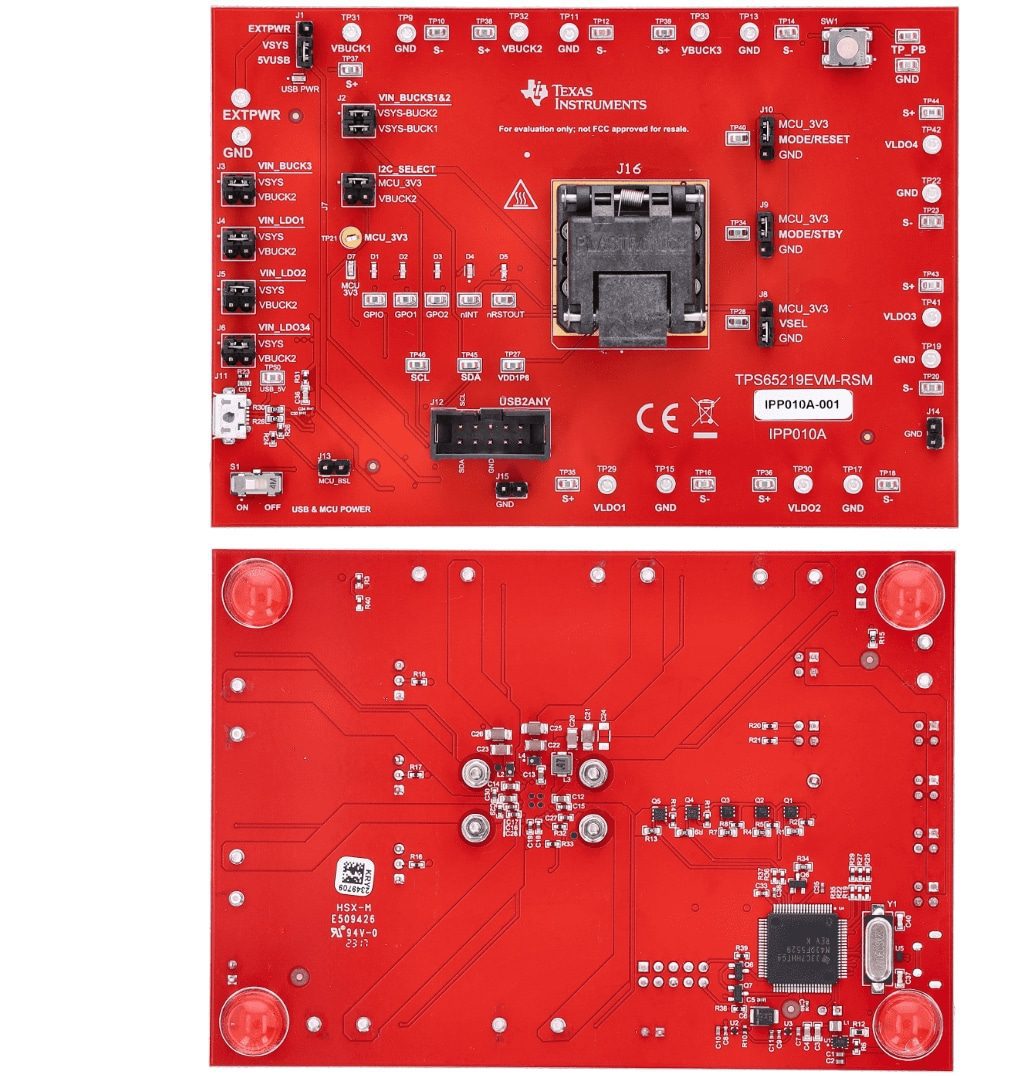

TPS65219EVM-RSM PCB Layout
