Texas Instruments TPS650330Q1EVM PMIC Evaluation Module (EVM)

Texas Instruments TPS650330Q1EVM PMIC Evaluation Module (EVM) is designed to evaluate the TPS65033x-Q1. The TPS65033x-Q1 is three step-down converters with one high PSRR LDO integrated Power Management IC (PMIC). The evaluation module includes an onboard USB-to-I²C adapter, power terminals and jumpers for the regulator inputs and outputs, and test points for common measurements.

The Texas Instruments TPS65033x-Q1 is a highly integrated PMIC for automotive camera modules. This device combines three step-down converters and one low-dropout (LDO) regulator. The BUCK1 step-down converter has an input voltage range up to 18.3V for connections to power over coax. All converters operate in a forced fixed-frequency PWM mode. The LDO can supply 300mA and uses an input voltage range from 2.2V to 5.5V. The step-down converters and the LDO have separate voltage inputs that enable maximum design and sequencing flexibility.

Features

Programmable output voltages
Programmable power up and down sequencing
Programmable spread spectrum on or off

Kit Contents

TPS650330Q1EVM evaluation module
Micro-USB cable

Required Equipment

Computer with Windows, MacOS, or Linux operating system
Camera PMIC GUI
Micro-USB cable

TPS650330Q1EVM evaluation module
DC power supply (4.5V to 19V)
- Banana cables for power and GND

Texas Instruments TPS650330Q1EVM PMIC Evaluation Module (EVM)

Features

Kit Contents

Required Equipment

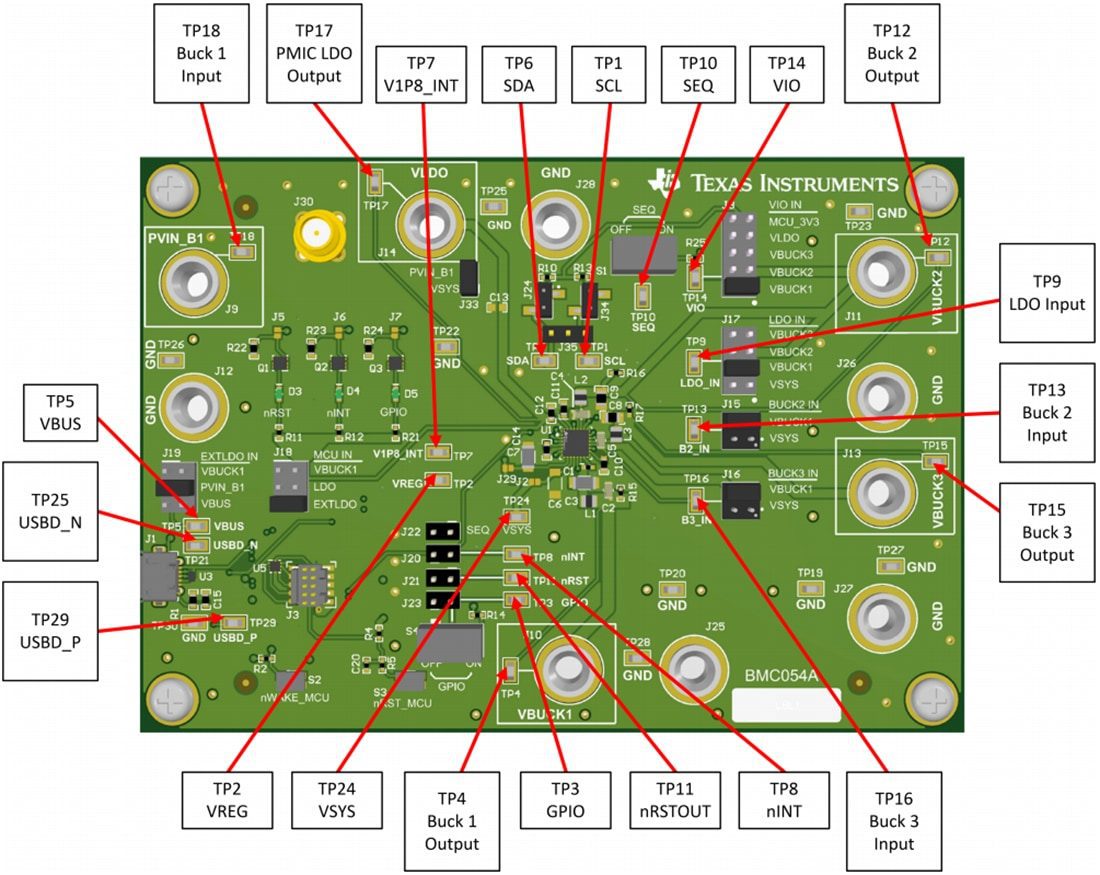

Test Point Locations
