Texas Instruments TPS62A0x/TPS62A0xA Step-Down Converters

Texas Instruments TPS62A0x/TPS62A0xA High-Efficiency Step-Down Converters are optimized for high efficiency and compact solution size. The device integrates switches capable of delivering an output current of up to 1A. The device operates in pulse width modulation (PWM) mode with a 2.4MHz switching frequency at medium to heavy loads. The device automatically enters power save mode (PSM) at a light load to maintain high efficiency over the entire load current range. In shutdown, the current consumption is minimal as well.

The Texas Instruments TPS62A0x/TPS62A0xA provides an adjustable output voltage through an external resistor divider. An internal soft-start circuit limits the inrush current during start-up. Other features like overcurrent protection, thermal shutdown protection, and Power Good are built-in. The device is available in a SOT-5X3 package.

Features

2.5V to 5.5V input voltage range
0.6V to V_IN adjustable output voltage range
180mΩ/120mΩ low R_DSON switches (1A)
20µA quiescent current
1% feedback accuracy (0°C to 125°C)
100% mode operation
2.4MHz switching frequency
Power save mode or PWM option available

Power-good output pin
Short circuit protection (HICCUP)
Internal soft start-up
Output discharge
Thermal shutdown protection
Available in a 1.6mm × 1.6mm SOT563 package
Pin-to-pin compatible with the TLV62585

Applications

Multi-function printer
Set-top box
TV applications
IP network camera

Wireless router, solid-state drive
Battery-powered applications
General-purpose point-of-load supply

Texas Instruments TPS62A0x/TPS62A0xA Step-Down Converters

Features

Applications

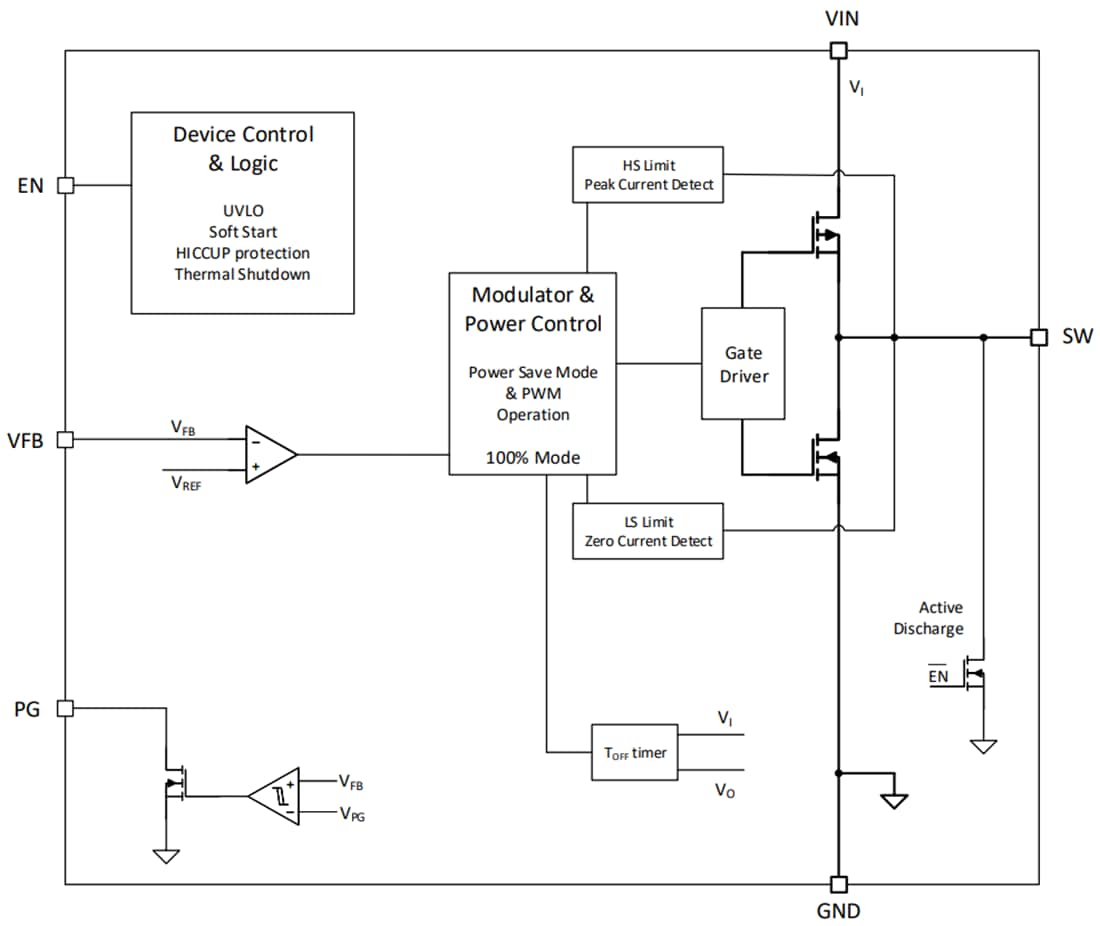

Functional Block Diagram
