Texas Instruments TPS62A01QEVM-270 & TPS62A01AQEVM-270 Eval Modules

Texas Instruments TPS62A01QEVM-270 and TPS62A01AQEVM-270 Evaluation Modules are designed to help users quickly evaluate and test the operation and functionality of the TPS62A01-Q1 and TPS62A01A-Q1 buck converters. The automotive synchronous step-down buck DC-DC converters are optimized for high efficiency and compact solution size. The TPS62A01AQ1 variant operates in forced PWM mode (FPWM) across the whole load current range.

The TI TPS62A01QEVM-270 and TPS62A01AQEVM-270 Evaluation Modules convert a 2.5V to 5.5V input voltage to a regulated 1.8V output voltage that supplies up to 1A maximum.

Features

Input voltage range of 0.5V to 5.5V
Adjustable output voltage range at 0.6V to V_IN
100% mode operation
Quiescent current <25µA

Feedback accuracy 1.5% (-40°C to 150°C)
Switching frequency 2.4MHz (PWM)
Power save mode or PWM option available

Applications

Front camera
Surround view system ECU
Automotive cluster display

Texas Instruments TPS62A01QEVM-270 & TPS62A01AQEVM-270 Eval Modules

Features

Applications

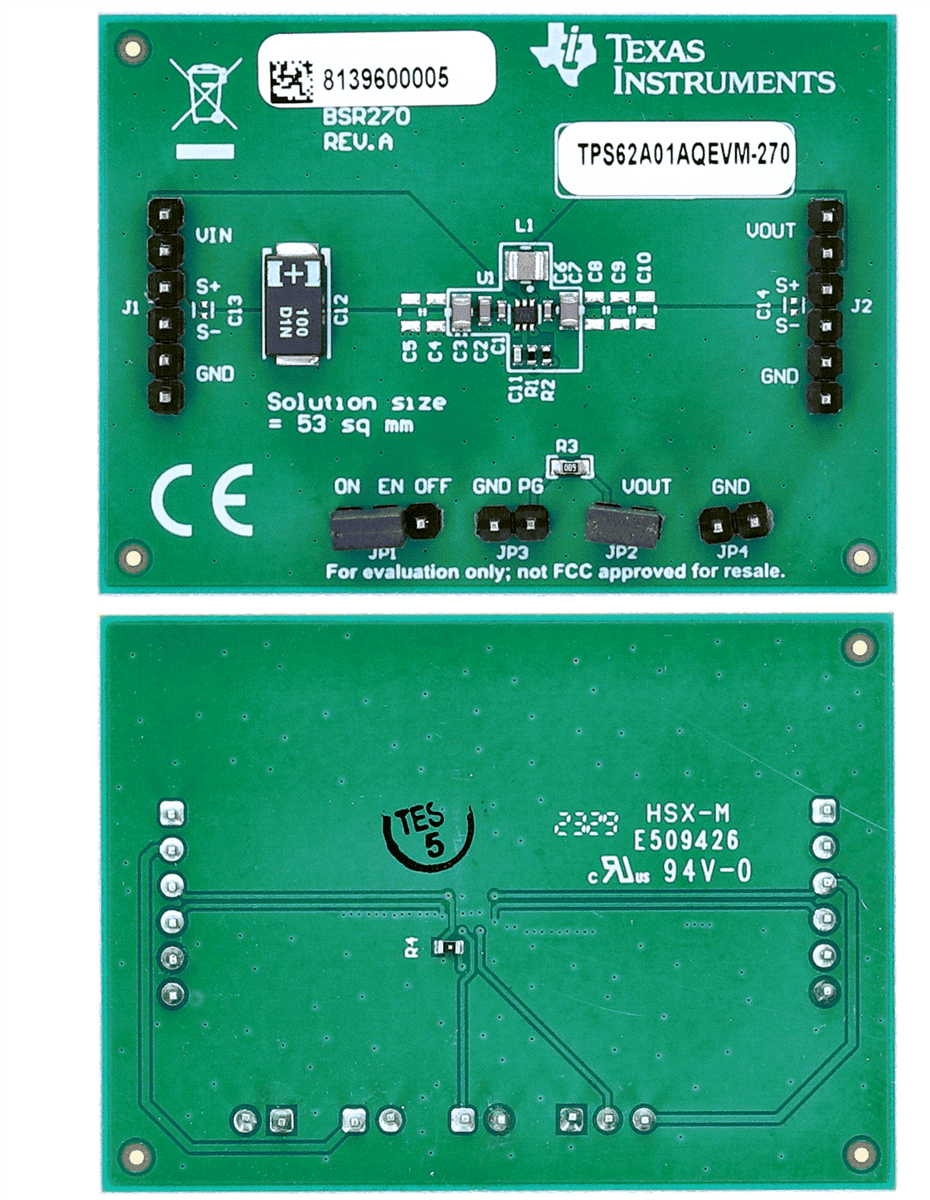

Layout
