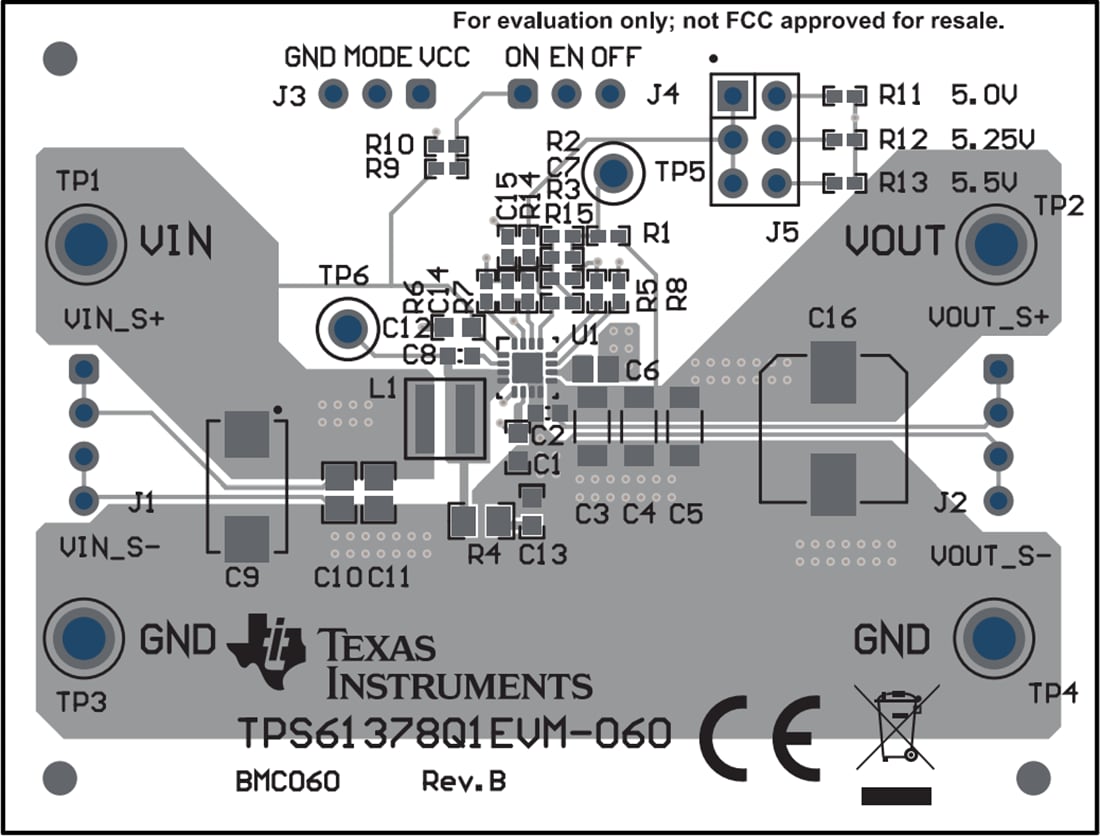

Texas Instruments TPS61378Q1EVM-060 Converter Evaluation Module

Texas Instruments TPS61378Q1EVM-060 Converter Evaluation Module (EVM) helps to evaluate the behavior and performance of the TPS61378-Q1 at different input voltage, output voltage and load conditions. The TPS61378-Q1 is a fully-integrated synchronous boost converter with load disconnect function integrated. The device is suitable as a post-boost for automotive applications with a programmable current limit up to 4.8A and maximum 18.5V output voltage. The Texas Instrument TPS61378Q1EVM-060 is optimized for 3.3V to 6.5V input voltage and 9V output voltage applications. The feedback divider and compensation network can be modified for other application conditions.
