Texas Instruments TPS562207S FCCM Mode Synchronous Buck Converter

Texas Instruments TPS562207S FCCM Mode Synchronous Buck Converter is a simple, easy-to-use, 2A synchronous buck converter in a SOT563 package. The device is optimized to operate with minimum external components and to achieve a low standby current. This switch-mode power supply (SMPS) device employs D-CAP2 mode control providing a fast transient response and supporting both low-equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components.

The Texas Instruments TPS562207S operates in Forced Continuous Conduction Mode (FCCM), which maintains fixed switching frequency and output voltage ripple is very small. The TPS562207S is available in a 6-pin 1.6mm × 1.6mm SOT563 (DRL) package and specified from a –40°C to 125°C junction temperature.

Features

2A converter with integrated 140mΩ and 84mΩ FETs
D-CAP2™ mode control with fast transient response
4.3V to 17V input voltage range
0.804V to 7V output voltage range
Forced continuous conduction mode
580kHz switching frequency
Low shutdown current of less than 3µA

1.5% feedback voltage accuracy (25°C)
Supports pre-bias start-up
Cycle-by-cycle overcurrent limit
Hiccup-mode overcurrent protection
Non-latch UVP and TSD protections
1.2ms fixed soft start

Applications

SMPS power supply for TV
Smart speaker
Wired networking

Digital set-top box (STB)
Surveillance

Texas Instruments TPS562207S FCCM Mode Synchronous Buck Converter

Features

Applications

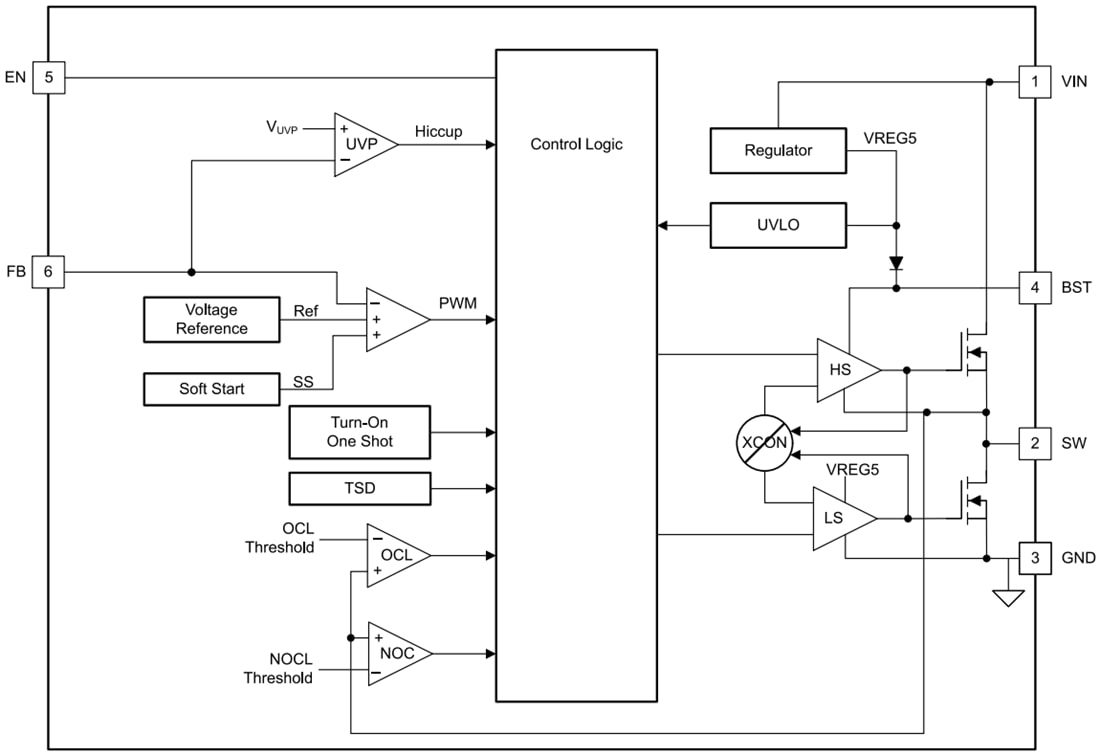

Functional Block Diagram
