Texas Instruments TPS55289Q1EVM-011 Converter Evaluation Module

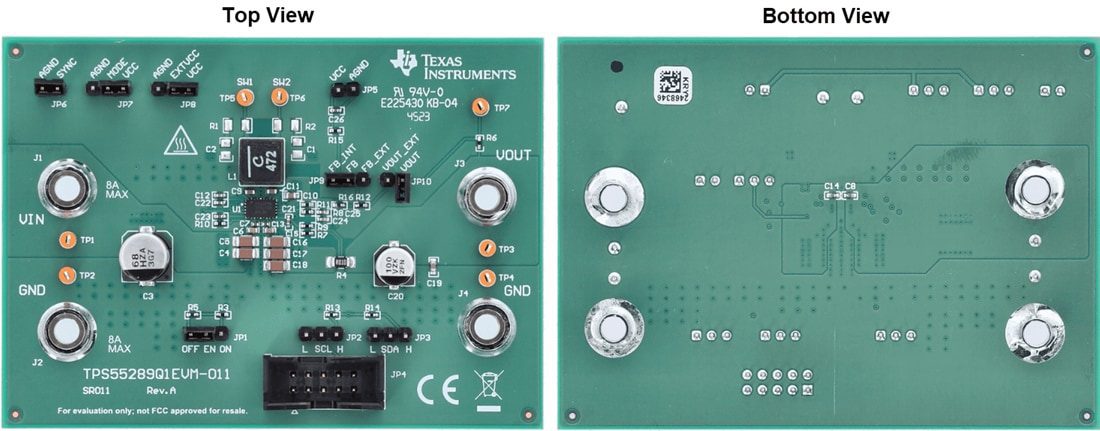

Texas Instruments TPS55289Q1EVM-011 Converter Evaluation Module (EVM) contains the TPS55289-Q1 device, which integrates four MOSFETs, providing a compact design for various applications. The device is optimized for converting battery voltage into power supply rails. Through the I²C interface, the output voltage can be programmed from 0.8V to 22V with a 10mV step, and the output current limit is programmable up to 6.35A with a 50mA step. This feature is suitable for USB Power Delivery (USB PD) applications. The Texas Instruments TPS55289-Q1 has adjustable external loop compensation, programmable switching frequency, optional spread spectrum, and rich protection features. All these features bring flexibility and design optimization for overall performance, as well as BOM optimization and design cost.
