Texas Instruments TPS552882EVM-400KHZ Evaluation Module

Texas Instruments TPS552882EVM-400KHZ Evaluation Module designed to quickly and easily demonstrate the TPS552882 Buck-Boost Converters. The TI TPS552882EVM-400KHZ Evaluation Module contains the TPS552882 device, a high-performance, high-efficiency synchronous buck-boost converter that integrates two 16A MOSFETs at the boost leg. The TI TPS552882EVM-400KHZ Evaluation Module includes I/O connectors and test points.

Features

  • 2.7V to 36V Input voltage range
  • 0.8V to 21.26V Output voltage range
  • 97% efficiency at VIN = 12V, VOUT = 20V and IOUT = 3A
  • Adjustable switching frequency 200kHz to 2.4MHz
  • Programmable output current limit

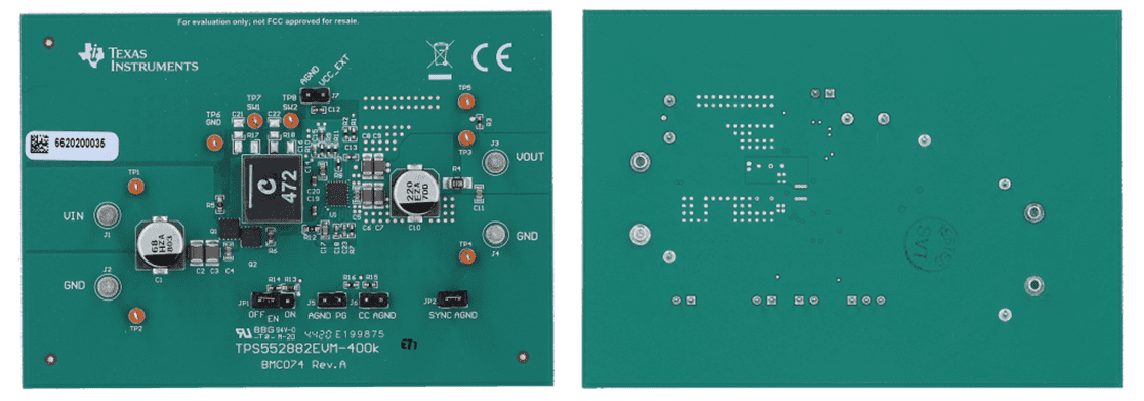

Front & Back Layout

Texas Instruments TPS552882EVM-400KHZ Evaluation Module
