Texas Instruments TPS543620EVM Converter Evaluation Module (EVM)

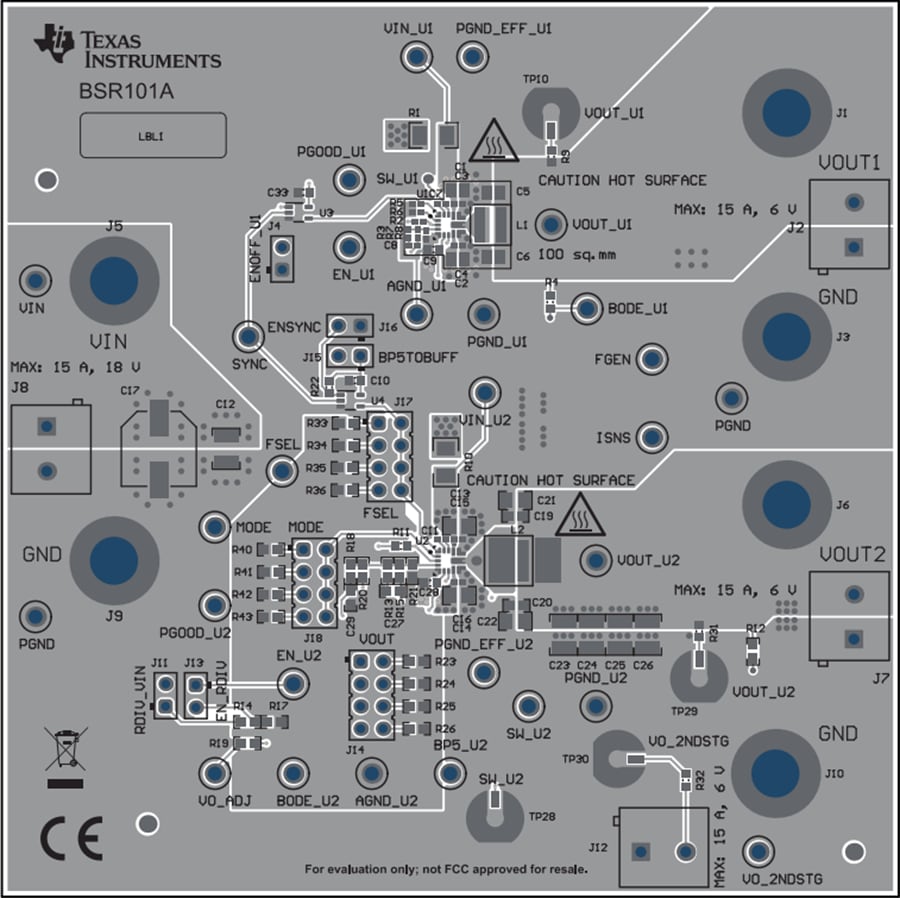

Texas Instruments TPS543620EVM Converter Evaluation Module (EVM) is designed for the evaluation of the TPS543620. The TPS543620 is a synchronous buck converter, integrating both power MOSFETs with a low drain to source resistance to minimize solution size and provide high efficiency at full load. The TPS543620 uses fixed frequency Advanced Current Mode control with a low minimum on-time for high switching frequency to minimize solution size and achieve a fast transient response. The Texas Instruments TPS543620EVM includes two designs with the TPS543620. The first design is to demonstrate the small printed-circuit-board areas that may be achieved when designing with the TPS543620 regulator. The small area design fits within 100mm². The second design demonstrates the high efficiency that can be achieved when designing with the TPS543620 regulator. This design also includes jumpers that can easily evaluate the features of the TPS543620.
