Texas Instruments TPS51383EVM Converter Evaluation Module

Texas Instruments TPS51383EVM Converter Evaluation Module (EVM) is a single synchronous buck converter board providing 3.36V at 8A from a 4.5V to 24V input. The TPS51383 is a single, D-CAP3™ mode synchronous buck converter requiring a very low external component count. The Texas Instruments TPS51383 supports a switch-over functionality specifically designed for a notebook power system. The integrated low RDS(ON) power MOSFETs enable high efficiency and offer ease of use with a minimal external component count for space-constrained power systems.

Features

  • Accurate reference voltage
  • Fast load transient response
  • Auto-skip mode operation for light load efficiency
  • OOA light load operation with > 25kHz switching frequency
  • D-CAP3 control mode with a good line, load regulation, and no requirement for external compensation

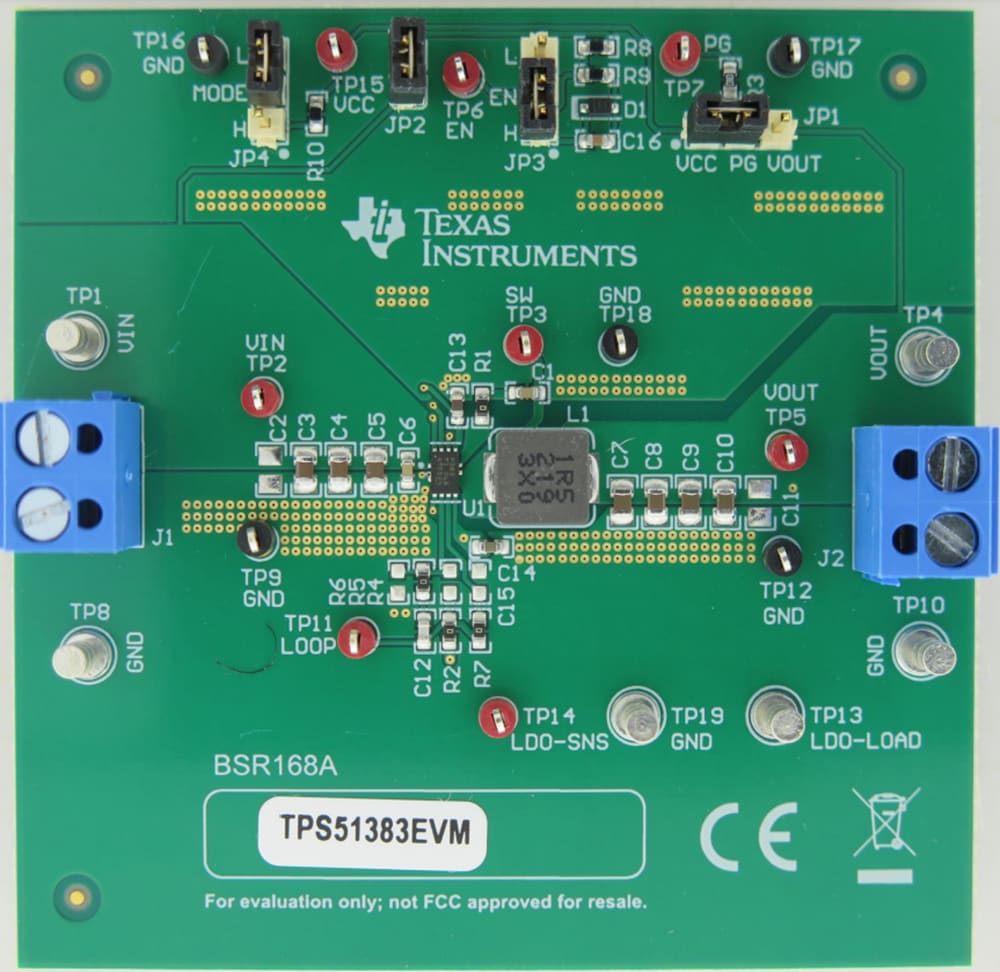

Board Layout

Mechanical Drawing - Texas Instruments TPS51383EVM Converter Evaluation Module
