Texas Instruments TPS274160EVM Switch Evaluation Module (EVM)

Texas Instruments TPS274160EVM Switch Evaluation Module (EVM) is designed to evaluate the TPS274160A and TPS274160B devices in TI’s high-side switch portfolio. The TPS274160 family is a fully-protected quad-channel, high-side power switch, with integrated NMOS power FET and charge pump. The Texas Instruments TPS274160EVM comes with the devices populated and allows variation A or B of the devices to be soldered down on the evaluation module.

Features

Quad-channel high-side power switch tested according to AECQ100-12
High-accuracy current sense

Reverse battery protection with the external ground network
Short circuit and overvoltage protection
Thermal shutdown and thermal swing self-recovery

Applications

Multi-channel LED drivers, bulb drivers
Multi-channel high-side power switches

Multi-channel high-side relay drivers
PLC digital output drivers

Texas Instruments TPS274160EVM Switch Evaluation Module (EVM)

Features

Applications

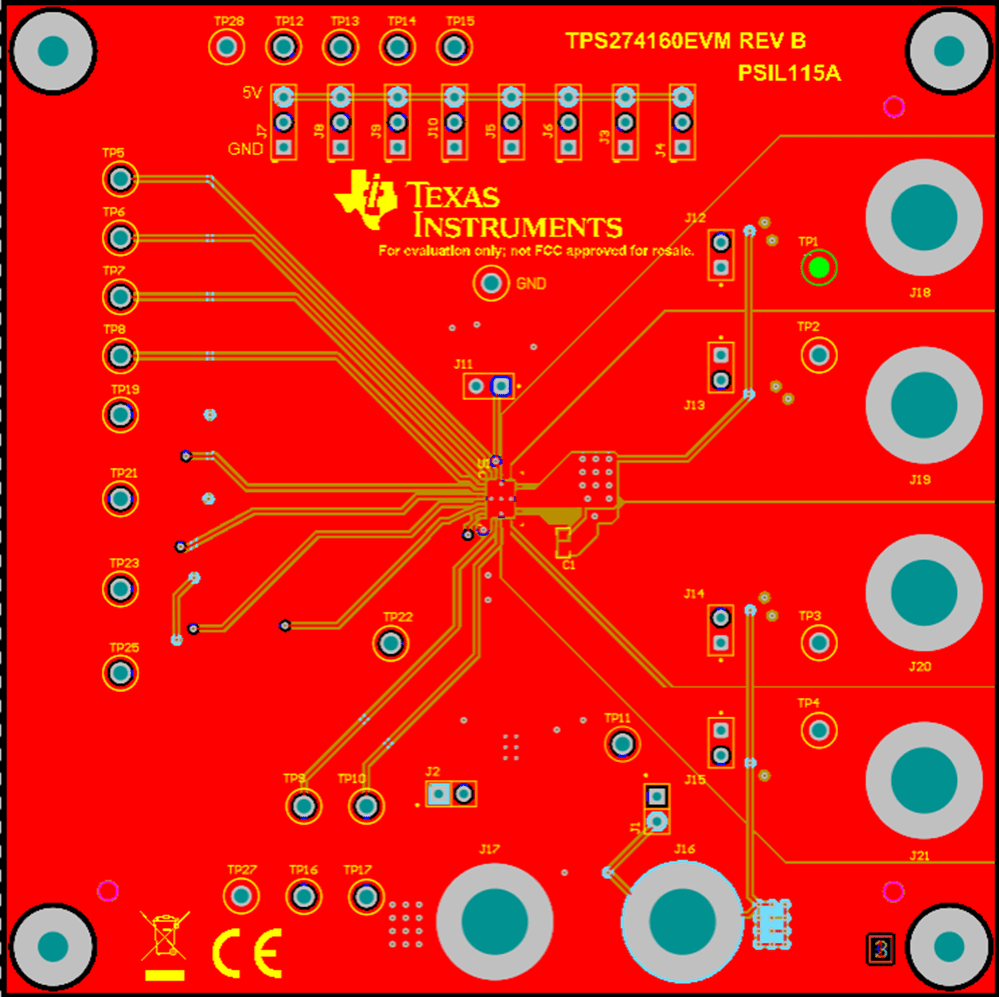

Board Layout
