Texas Instruments TPS25948EVM Evaluation Module

Texas Instruments TPS25948EVM Evaluation Module allows users a reference circuit evaluation of the TPS25948 eFuse. The TI TPS25948 is a 3.5V to 23V, 8A eFuse with integrated 12mΩ FET. The device provides reverse current protection, inrush current protection, programmable under-voltage, over-voltage protection, and current limiting.

Features

  • 3.5V to 23V (typ) operation
  • 1A to 9A programmable current limit using onboard jumpers
  • Programmable transient current blanking timer
  • Programmable output slew rate control, UVLO, current limit
  • LED status for supply good and fault indication
  • Power mux configurations

Applications

  • Smartphone and tablet
  • PC and notebook
  • USB port protection
  • Power MUXing/ORing
  • Adapter and charger input protection

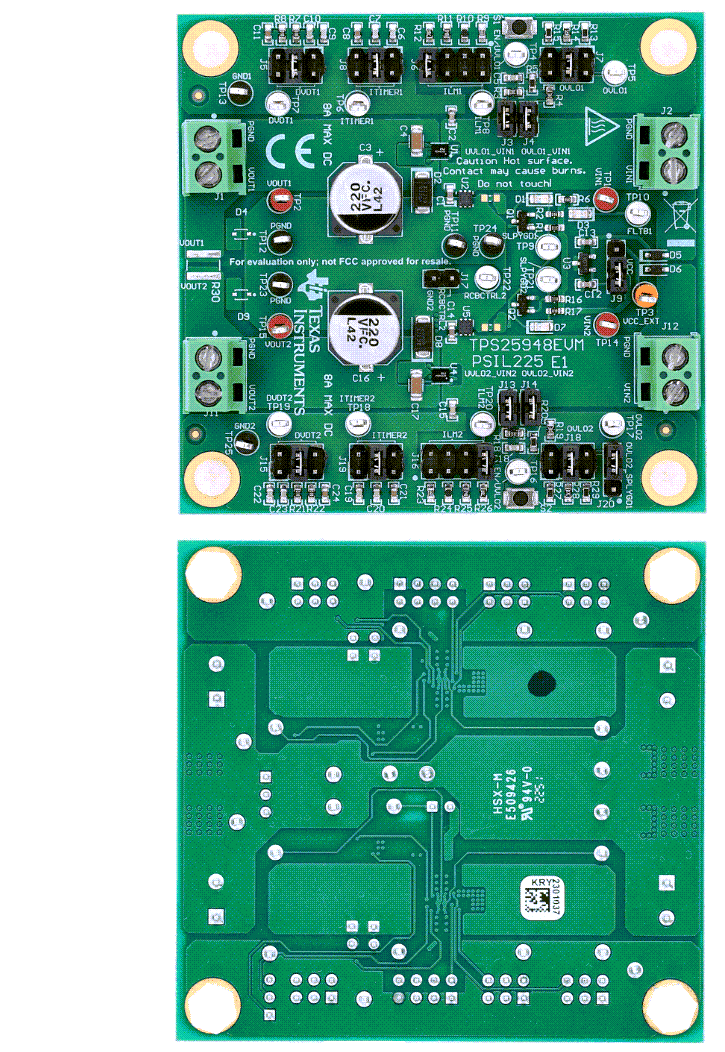

Layout

Texas Instruments TPS25948EVM Evaluation Module

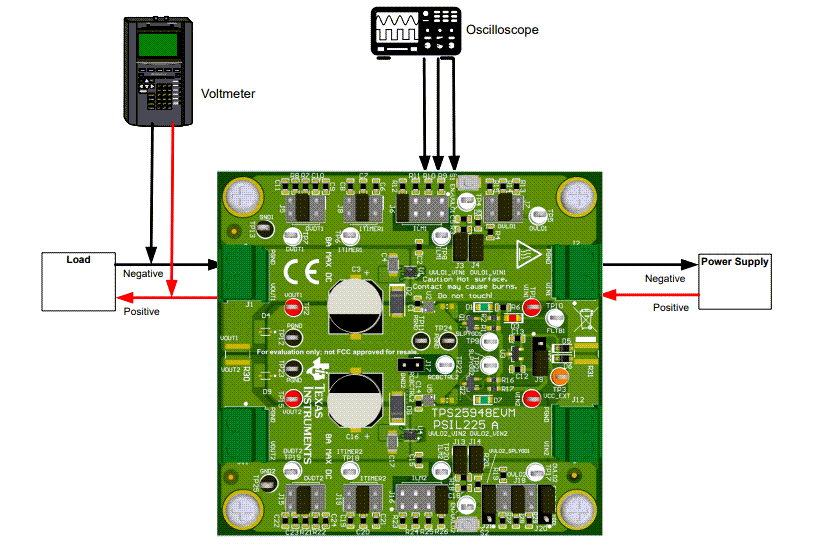

Setup with Test Equipment

Location Circuit - Texas Instruments TPS25948EVM Evaluation Module
